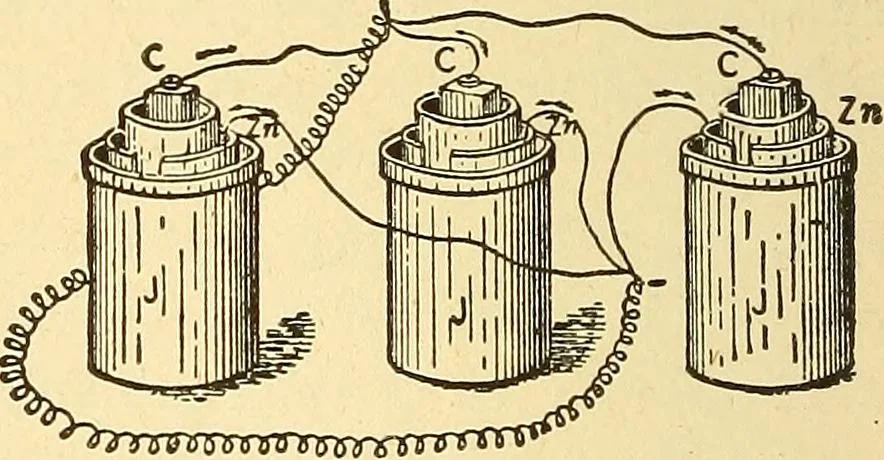

which the ground is not employed as any part of thepath of the current, metallic conductors beingemployed throughout the entire circuit. Circuit, Multiple A compound cir-cuit, in which a number of separate sourcesor separate electro-receptive devices, or both,have all their positive poles connected… … Fig. 127. Magnetic Circuit. In the bar magnet, shown in Fig. 127, part ofthis path is through the air. In order to reduceor lower the resistance of a magnetic circuit, iron Fig. 128. Batteries connected in a Multiple Circuit. bons, C, C, C, are connected together so as to formthe positive, or -f-…
