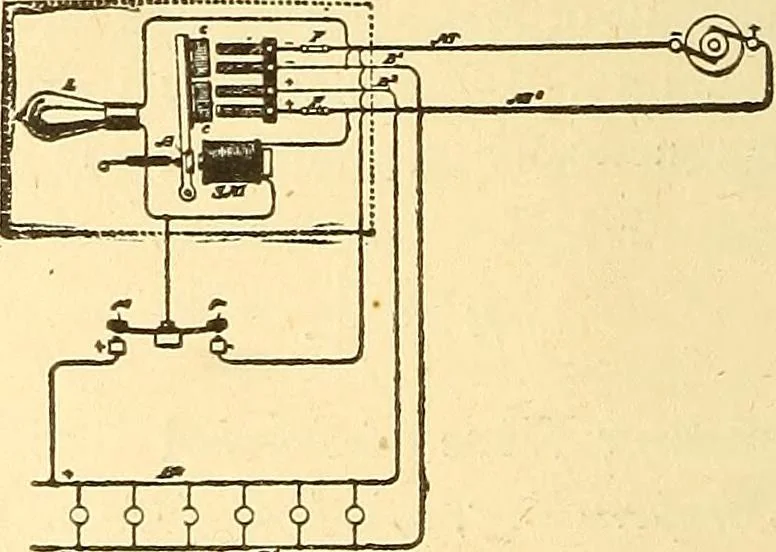

Fig. 519. Automatic Switch. the lamps to be lighted, to the contacts betweenthem. The push buttons, P1 and P2, are con-nected by their wires to the main M1 and thebranch B1. These buttons are made respectively positiveand negative, and are marked -j- and —. Thethird wire of the push button is… … Fig. J20. Automatic Switch.. lished between the magnet and the lamp L, inseries. This is for the purpose of cutting downthe circuit to the ^ of an ampere, and thus per-mitting a thin wire to serve between the buttonand the switch magnet. When the button, P2, is closed the lamps areturned out.…
