A dictionary of electrical words, terms and phrases (1896)
Houston, Edwin J. (Edwin James), 1847-1914 · New York, The W.J. Johnston company · leaf 343

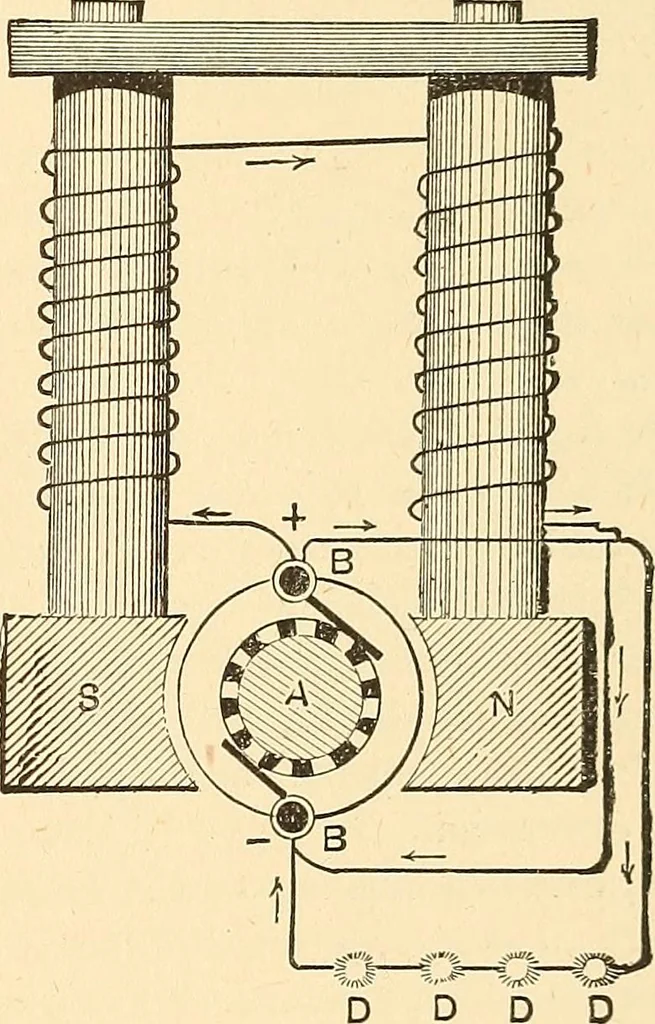

s shown in Fig.356. This machine maintains a constant currentin its circuit, notwithstanding changes in its ex-ternal circuit. Machine, Dynamo-Electric, Shunt-Wound A dynamo-electric machine in which the field magnet coils are placed in a shuntto the armature circuit, so that only aportion of the… … D DFig. 357. Shunt Dynamo. In a shunt dynamo-electric machine, an in-crease in the resistance of the external circuit in-creases the electromotive force, and a decrease inthe resistance of the external circuit decreases the-electromotive force. This is just the reverse ofthe series-wound dynamo. In…
Electricity · Electrical engineering
