A dictionary of electrical words, terms and phrases (1896)
Houston, Edwin J. (Edwin James), 1847-1914 · New York, The W.J. Johnston company · leaf 345

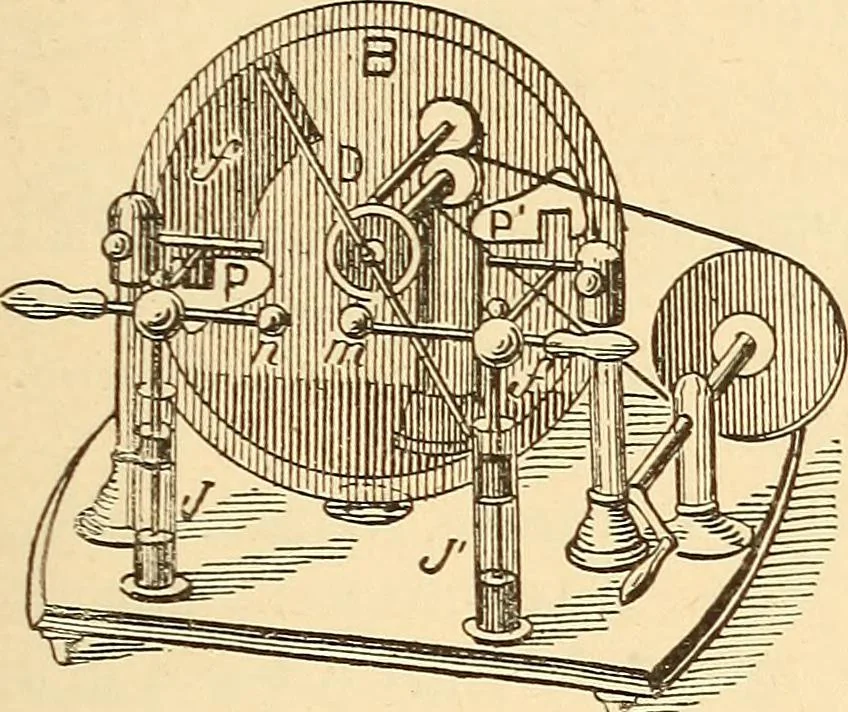

Induction A machine in which a small initial chargeproduces a greatly increased charge by its in-ductive action on a rapidly rotated disc ofglass or other dielectric. An excellent type and example of such a ma-chine is found in the Holtz machine, which con- Mac 333 [Mac. •sists of the following… … Fig. 338. Holtz Electric Machine. (3.) Armatures of varnished paper f, f, placedon opposite sides of the fixed plate at holes orwindows P, P , cut in the plate. The armaturesare placed on the side of the fixed plate away fromthe moving plate, or on the back of the plate, sothat the plate, on its…
Electricity · Electrical engineering
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
