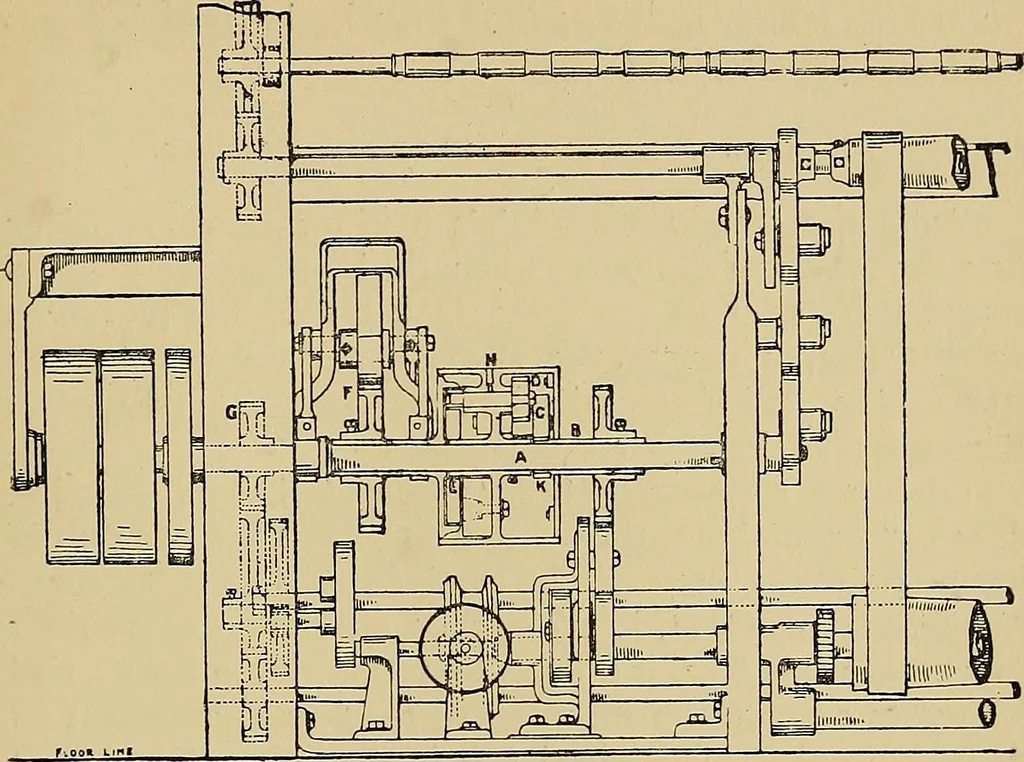

e.—Since writing the above, two of our bestwriters have altered their descriptions to agree with thosehere given.] CURTIS & RHODES DIFFERENTIALMOTION. This motion was the first of the new differential wind-ing motions to be successfully applied to any extent. Atthe time of writing it can be… … Fig. 56. DESCRIPTION OF PARTS. The illustration Fig. 56 shows the motion as applied to abobbin andfly-framemadeby Messrs. Piatt Bros.,of Oldham.Nothing but spur wheels are used. A is the drivingshaft, the spindles being driven by wheel G, and thebobbins by wheel F. As usual the wheel F driving…
