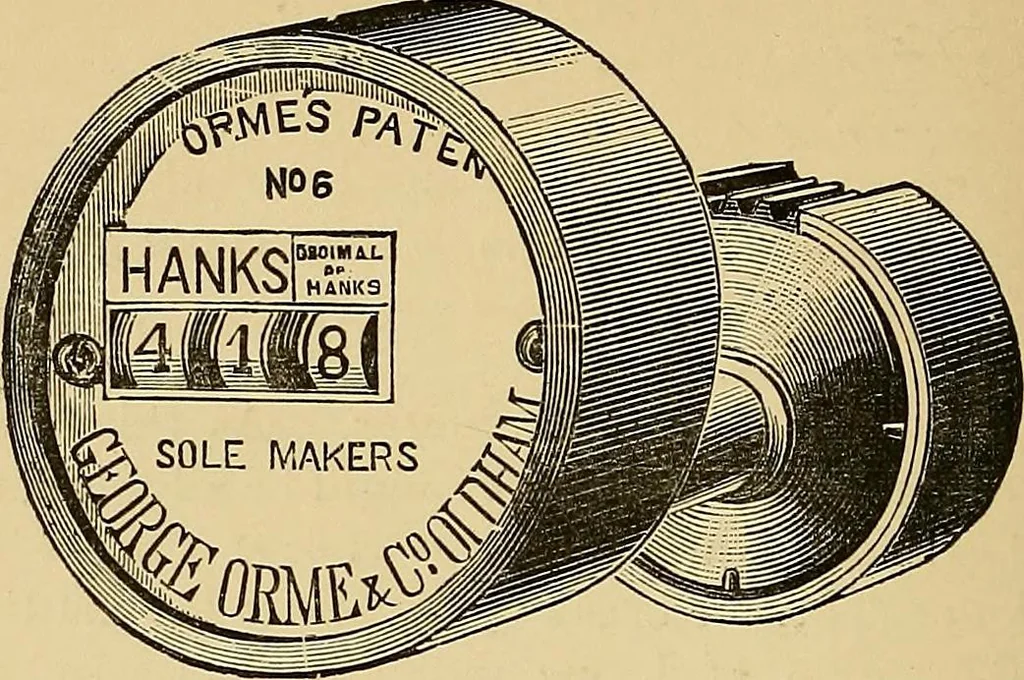

ulations relating to this style. The following wheels were taken from another old styleof indicator, diameter of front roller ijin. A single wormon front roller gave motion to a 50-worm wheel. Thenthere were four small pinions, each containing six teeth,giving motion to three wheels containing 60… … Fig. 67. ORME S INDICATOR. Pig. 67 shows the indicator for frames as made byMessrs. George Orme & Co., Atlas Meter Works, Oldham.It is a popular indicator, and gives very satisfactoryresults. In each of the indicators previously men-tioned the dial plate or clock face is divided into…
