Draw frames and fly frames : being a practical treatise on the above machines (1898)
Thornley, T. (Thomas) · Manchester : A. Heywood · leaf 42

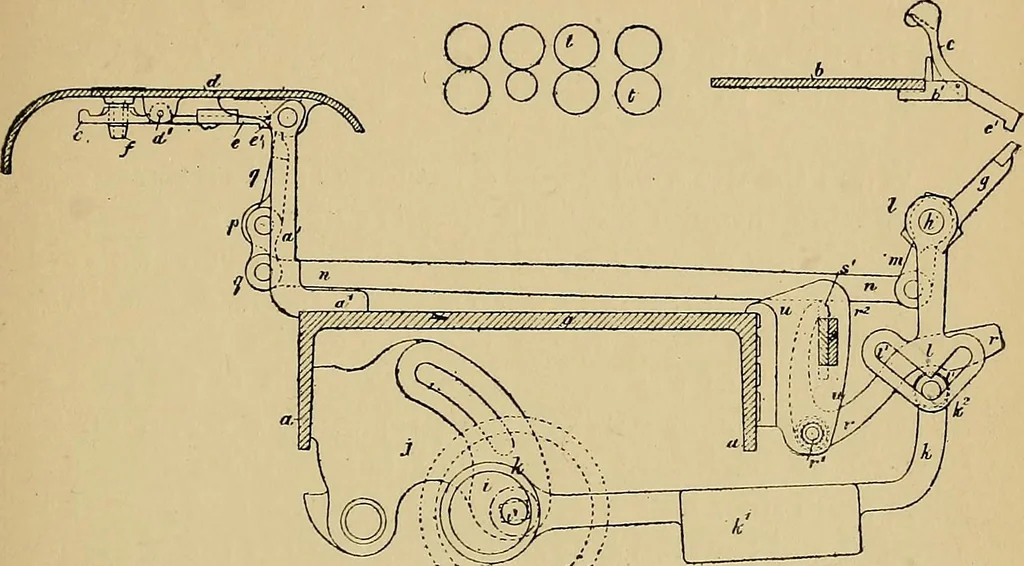

at B. In its upward movement it releases the rod forstopping the machine. A similar ejETect, but by differentconnections, stops the machine in the other cases. InFig. II, is illustrated a recent improvement in stop-motionsby Messrs. Asa Lees and Co. The motion is given indetail for the benefit of… … Fig. II. and i is a plate at the front of the machine supported bya^ bolted to the frame a; to the underside of the plate dpivoted at d^ balanced levers e which have hooks or pro-jections e^ and carry the front funnels /. The balancedback spoons e are adjusted in the ordinary way so thatwhen a…
Textile machinery
