Dressings and finishings for textile fabrics and their application; description of all the materials used in dressing textiles (1911)

Polleyn, Friedrich, Salter, Charles · London, Scott, Greenwood · leaf 265

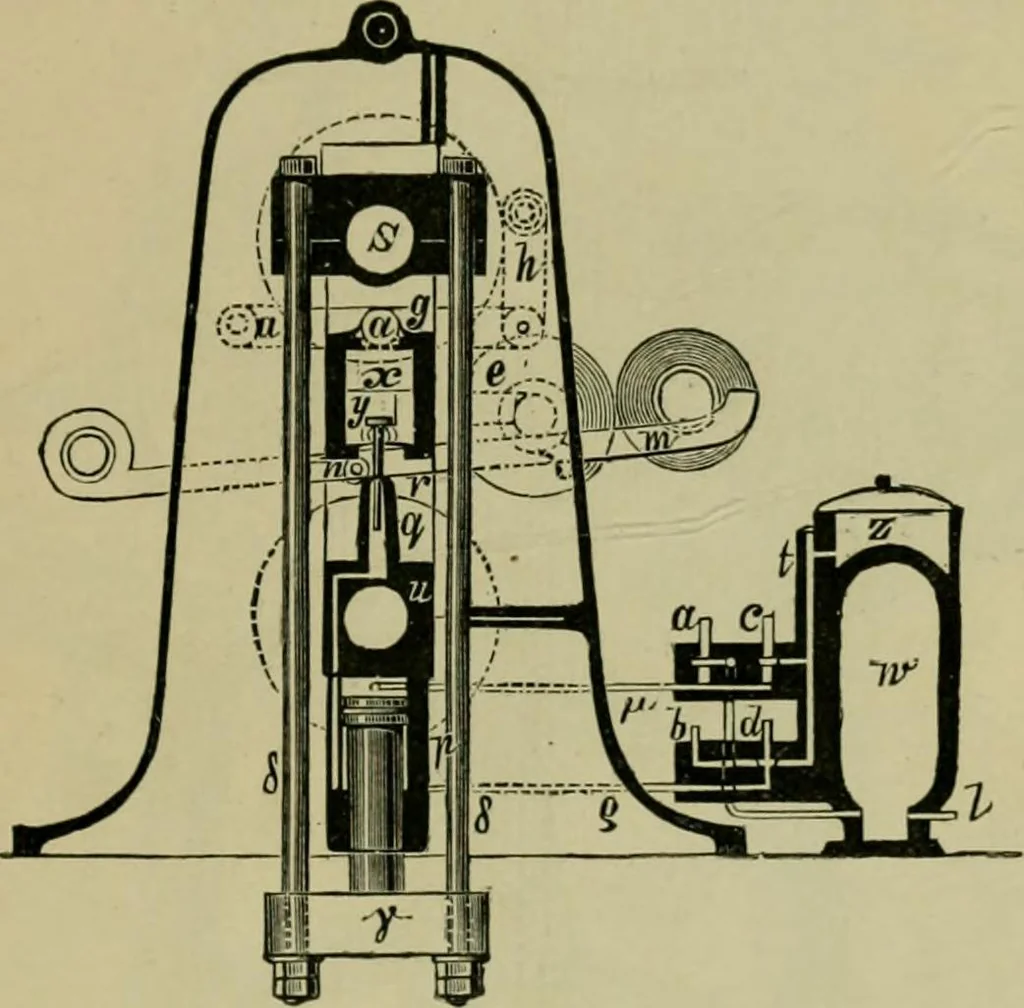

An illustration from Dressings and finishings for textile fabrics and their application; description of all the materials used in dressing textiles, 1911, leaf 265 — e acting and are firmly secured to thebearings of the lower bowl, the plungers r operating the bearing 9,of the upper bowl, through crossheads and the draw bars r/, andthus indirectly acting on the journals of the (doth beam. Theseare enclosed above by the bearings y (open below), which can… … Fie;. 58.—Gebauers hydraulic box-mangle. single-action cylinders g, with plunges r. The hydraulic pressurefor both sets is furnished by a pump, with wind chest w and feedpipe 7. The valves a, b, and pipes u, e admit pressure into thecylinders, whilst the valves c, d, and main t allow the spent…

Textile finishing
