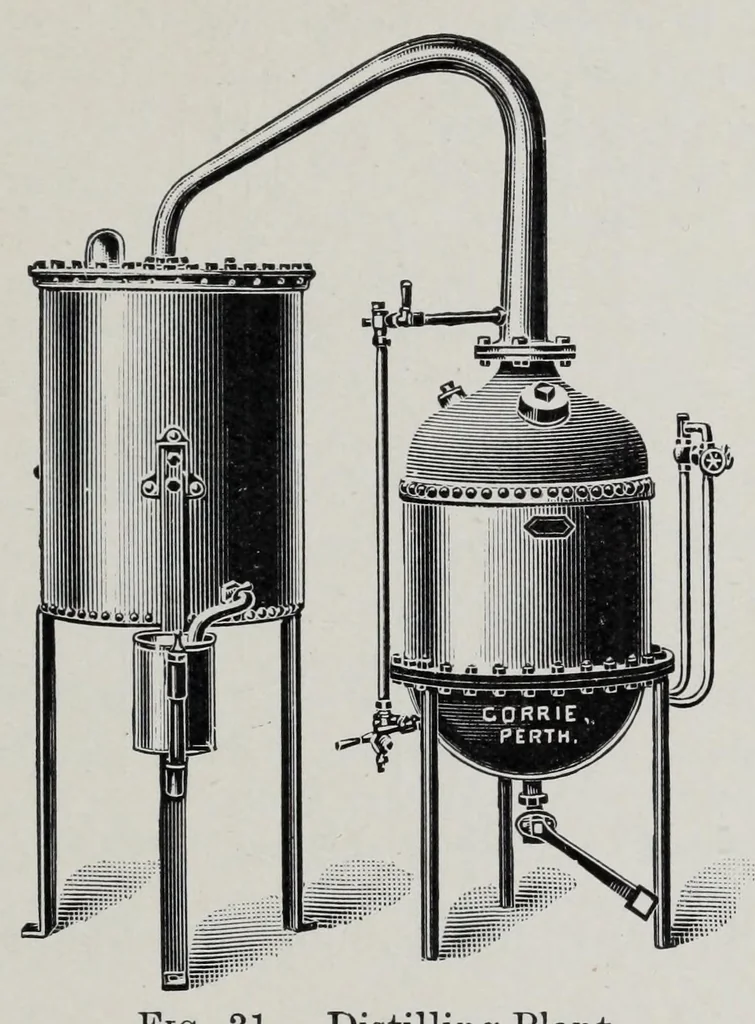

ortion of water in the mixed distillate. The essential portions of a distilling plant (fig. 31) are : Still (with steam coil and "live" steam supply). Condenser. Separator. The still consists of an iron (or copper) vessel varying in capacity from 20 gallons upwards, the size depending upon the… … Fig. 31.— Distilling Plant. for the dirty spirit, an outlet at the bottom for the undistilled residue, and at the top a swanneck leading to the condenser. The condenser consists of a copper coil in a cylindrical vessel through which water passes, the water entering at the bottom of the vessel and…
