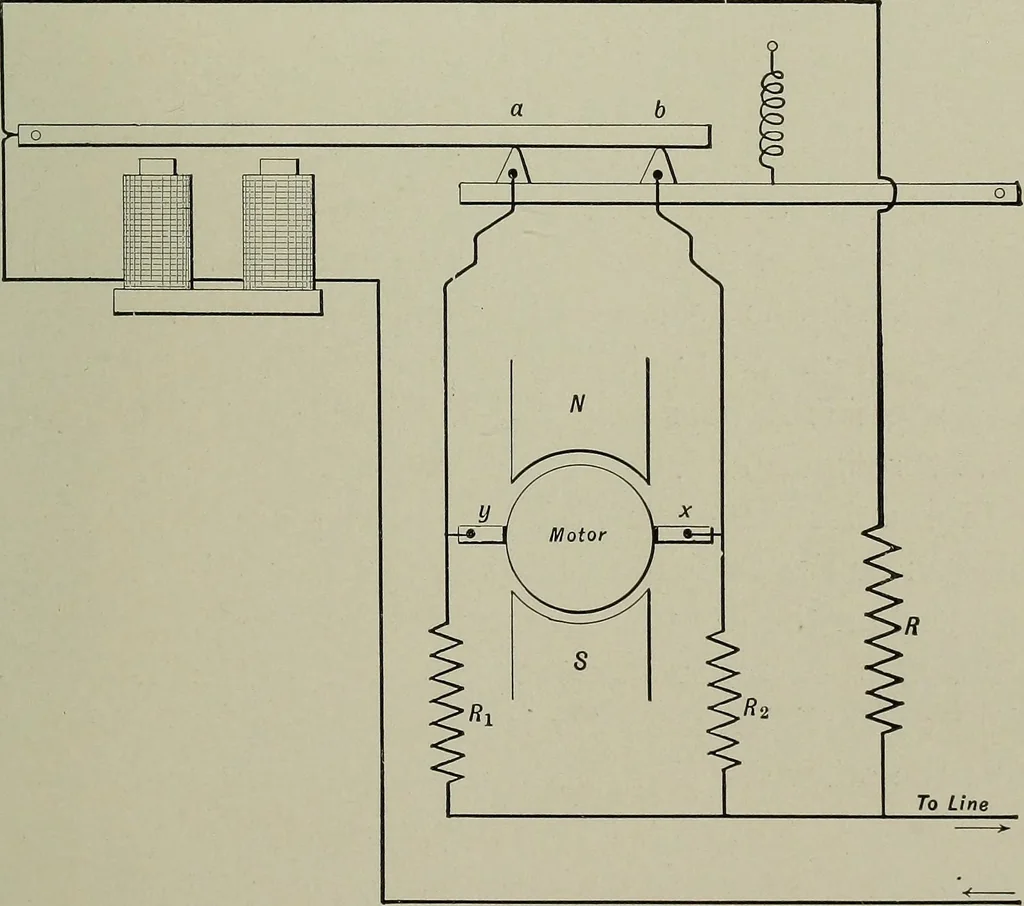

Fig. 120. GENERATORS. 199 The magnet and spring are so adjusted that when the nor-mal current is flowing, both a and b are in contact with theleft lever, and the current flows in the three shunt paths,R, R^, and R^. There will be no current in the armatureof the regulating motor, since the… … From Dynamo Fig. 121. equal to the potential at brush 7. If now the line currentbecomes too strong the magnet attracts the left lever toit and the contact at a is broken. Immediately the currentflowing through d divides at the brush ,r, part going throughR^ and part through the motor armature and…
