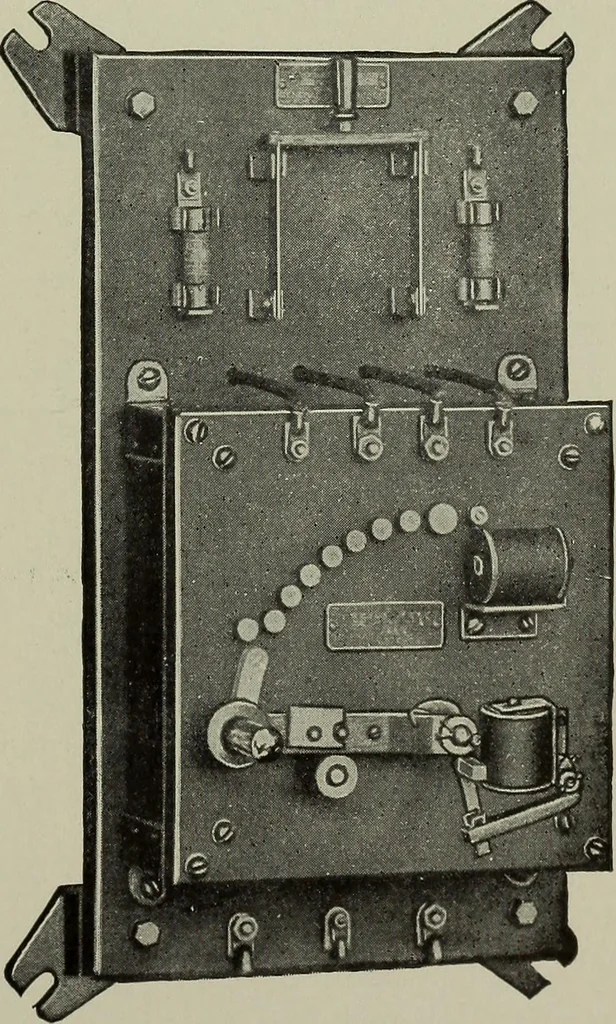

If now, be-cause of low voltage,the current in the fieldwinding and magnetbecomes low, the mag-net is no longer able toretain the handle, andthe spring throws it tothe off position,where it stays until themotor is again turnedon by an attendant.The overload coil is ^^^- *°* connected in series with… … 228 DYNAMO ELECTRIC MACHINERY. to the off position. This panel is provided with a mainswitch and enclosed fuses, although the latter are fre-quently replaced by circuit breakers. A combined starting and field-regulating rheostat madeby the Cutler-Hammer Manufacturing Company is shown in Fig. 141.…
