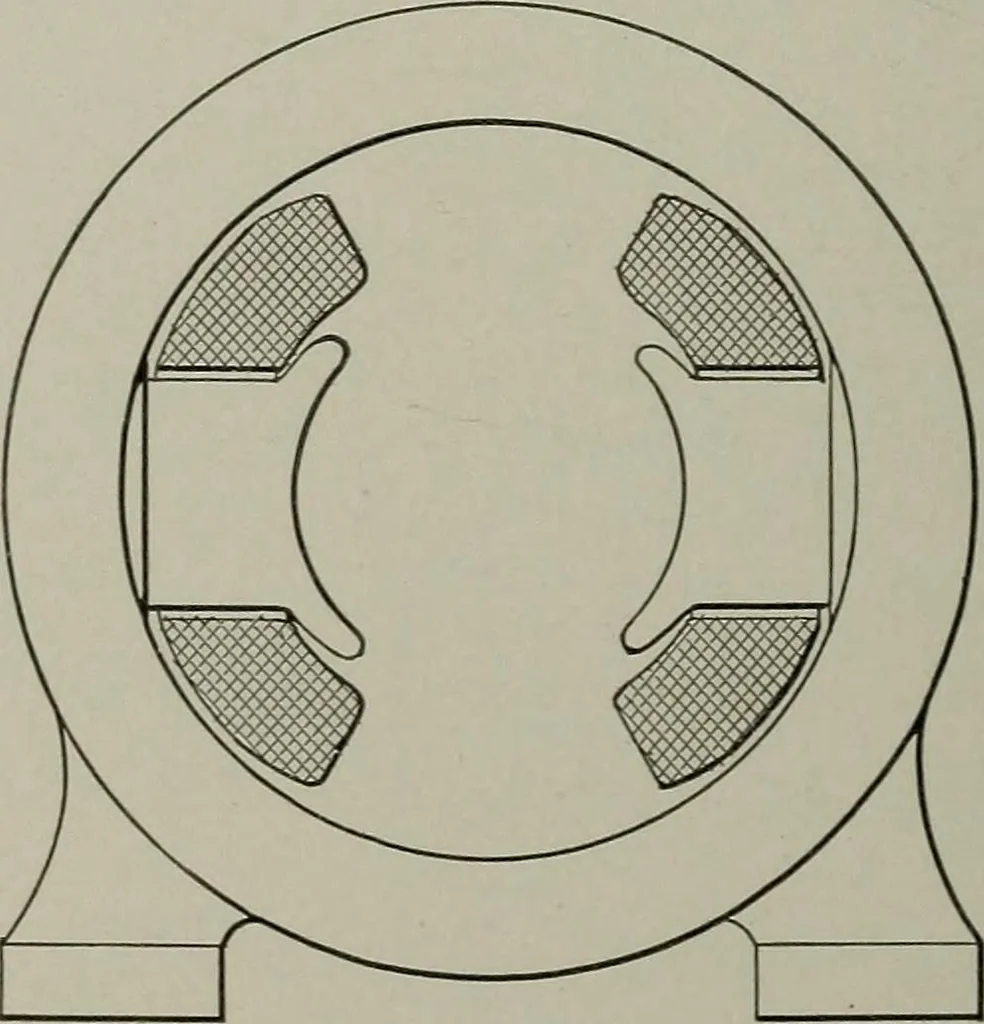

Fig. 21. Fig. 22. one leg, or on X\\q yoke which connects the two. The bestand most used bipolar arrangement is the enclosed type of … Fig. 23. Fig. 23, for the coils are almost completely surrounded byiron, thereby securing protection from mechanical injury,as well as avoiding excessive magnetic leakage. ARMATURES. 55 A typical form of multipolar field magnet structure isshown in Fig. 24, in which an even number of poles are…
