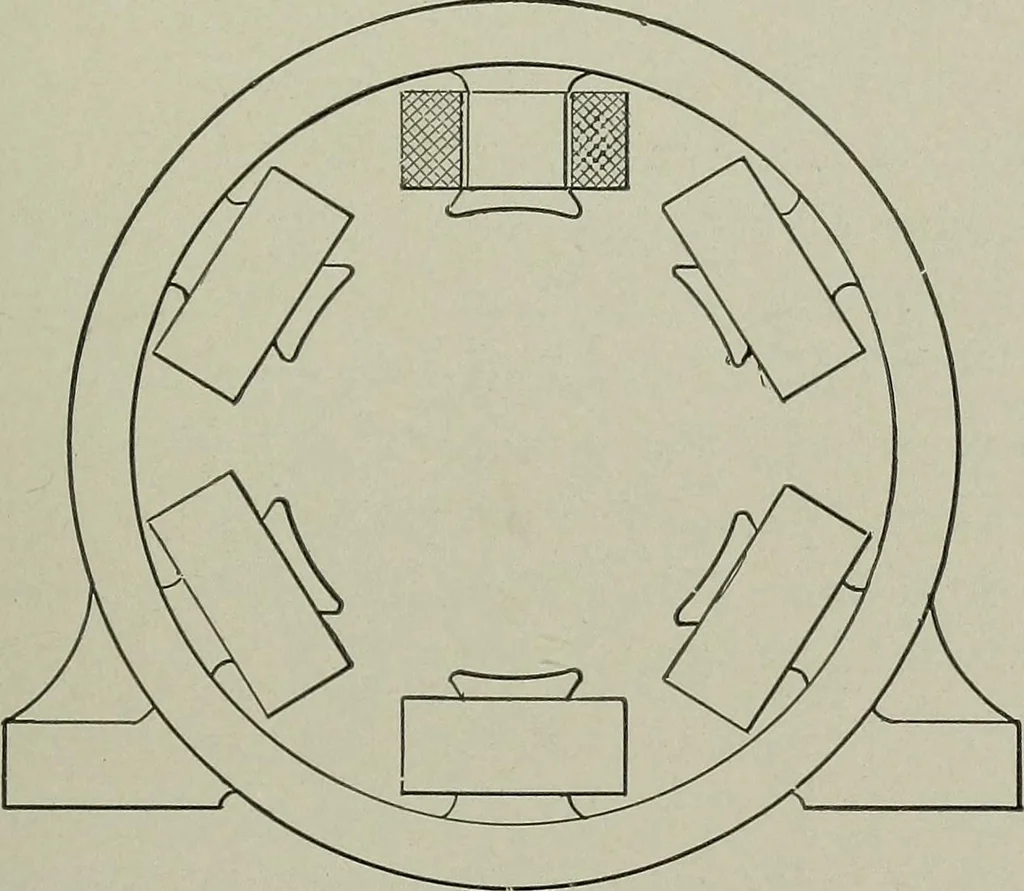

Fig. 23. Fig. 23, for the coils are almost completely surrounded byiron, thereby securing protection from mechanical injury,as well as avoiding excessive magnetic leakage. ARMATURES. 55 A typical form of multipolar field magnet structure isshown in Fig. 24, in which an even number of poles are… … Fig. 24. 36. Armature Windings. — It is possible to connect theconductors of an armature to each other and to the com-mutator segments in a great many ways that will permit ofsatisfactory operation. The design of an operative schemeof winding is, to a great extent, a geometrical problem. Ofthe many…
