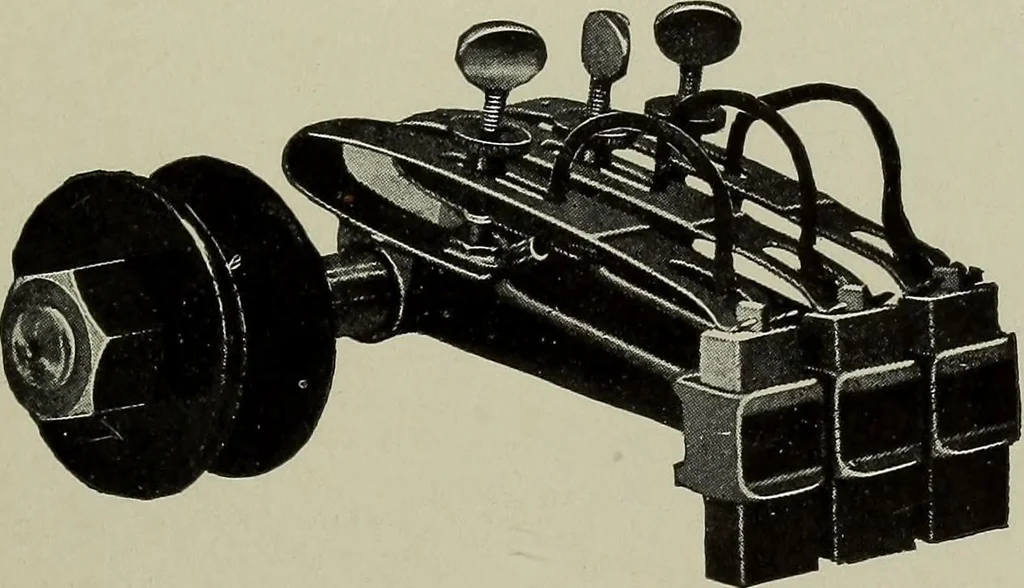

Fig. 48. ARMATURES. 83 trie Company brush-holder arm is shown complete inFig. 49. The brush-holder arms are carried on rings, calledrockers, which are mounted concentric with the commuta-tor, either on a sleeve at the front bearing or on the field … Fig. 49. magnet frame. The rocker is capable of being movedaround the commutator by means of a tangential screwand hand wheel. After the proper brush position has beenfound the rocker is securely clamped. All the brushes, bothpositive and negative, are usually mounted on the samerocker, so that…
