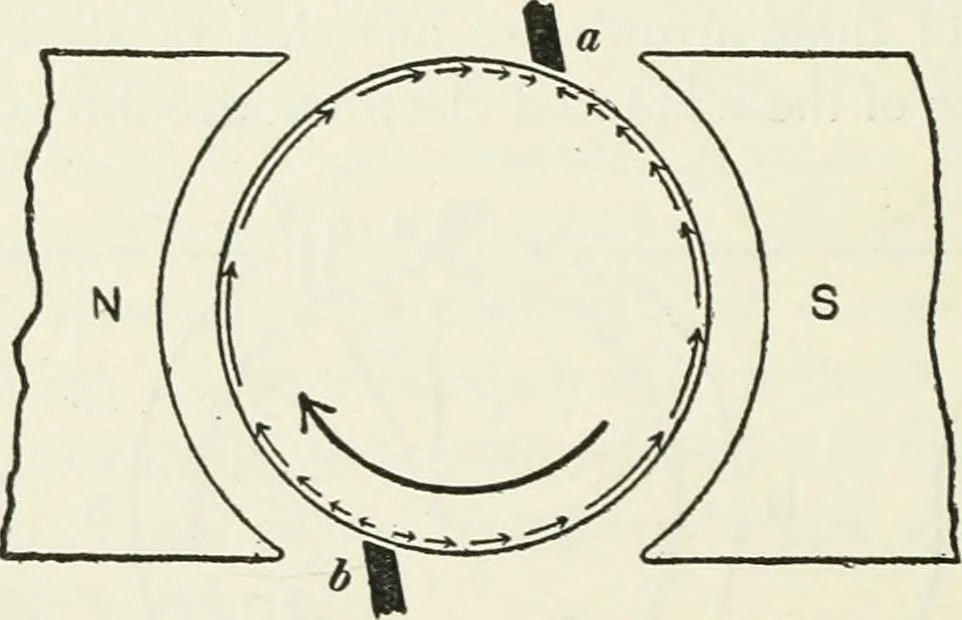

Fig. 88. the axis of commutation.^ When the brushes of a generator areshifted by moving the rocker arm, the electromotive force be-tween the brushes, as indicated by a voltmeter, reaches a max- … Fie. 89. imum value when the axis of commutation coincides with theneutral axis. In fact the whole of the electromotive force E^,which is induced in each half of the armature, is available betweenthe brushes when the brushes are at the points a and b, Figs. *The leads which connect the armature…
