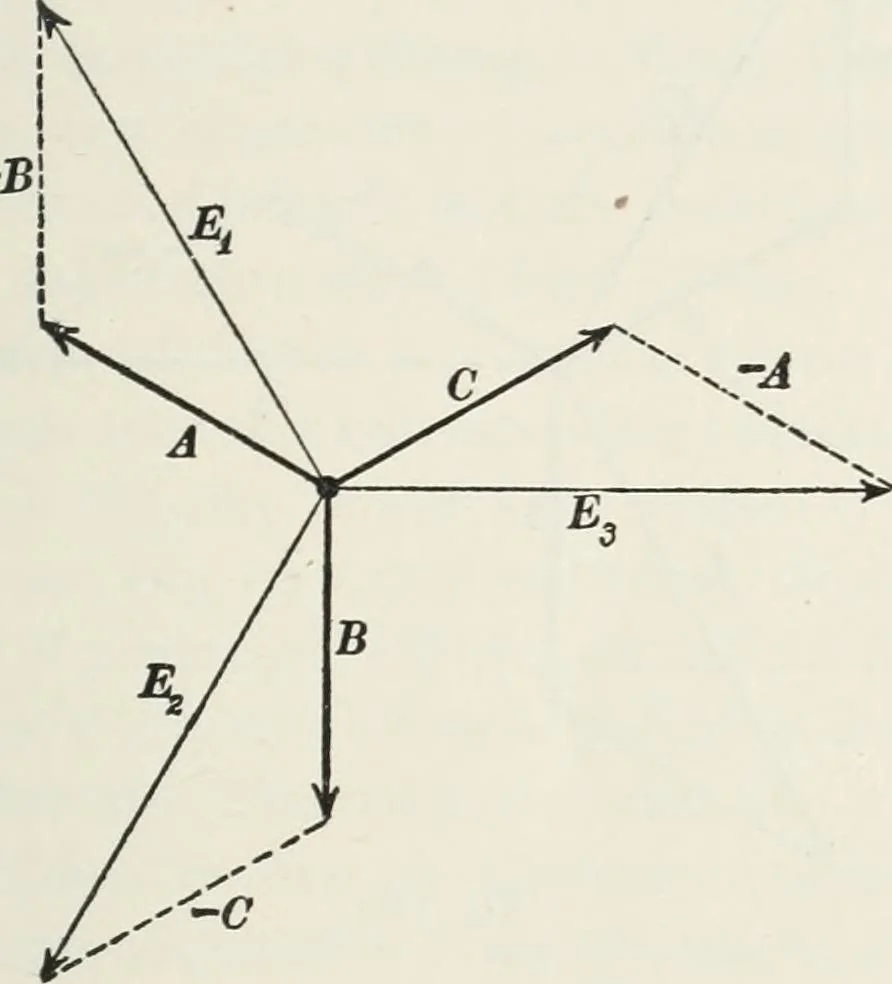

e force from main i to main 2 (positive), and that a positiveelectromotive force in winding B produces an electromotive force THE POLYPHASE SYSTEM. 229 from main 2 to main i (negative). Therefore E^ is equal toA — B (vector difference). Similarly E^ is equal to B — C,and E^ is equal to C — A. These… … Fig. 173. {U) Current relations. — In the Y-scheme of connections thecurrents in the mains are identical to the currents in the respec-tive windings. This is evident from Fig. 168. (2) Referring to the receiving circuits, {a) Electromotive forcerelatiofis. — Given the electromotive forces, E^, E^…
