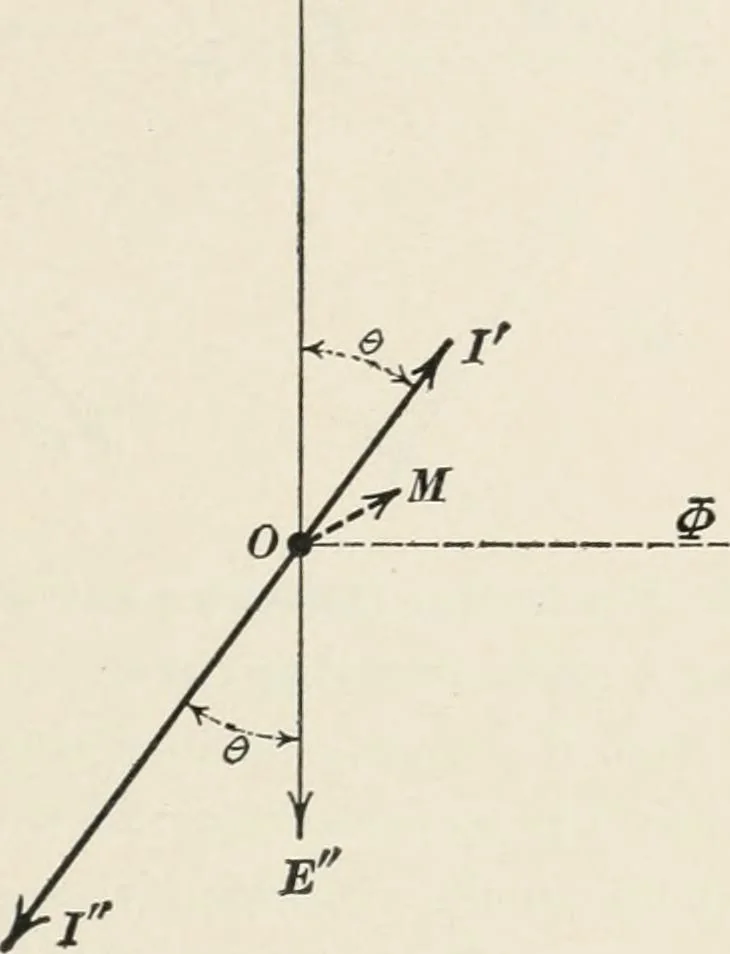

ictness, be represented by a line ina clock diagram. In Figs. 220, 221 and 222, however, M is THE SIMPLE THEORY OF THE TRANSFORMER. 313 represented by a line. The current so represented is called theequivalent harmonic magnetizing current. Case I. Non-inductive receiving circuit. — In this case… … ^r Fig. 220. Fig. 221. magnetizing current in the primary coil, and the vector sum ofOM and / represents the total primary current. The vector0^ represents the harmonically varying core flux. Figures220 to 223 all represent a 2 : i step-down transformation. Case 2. Inductive receiving circuit. — In…
