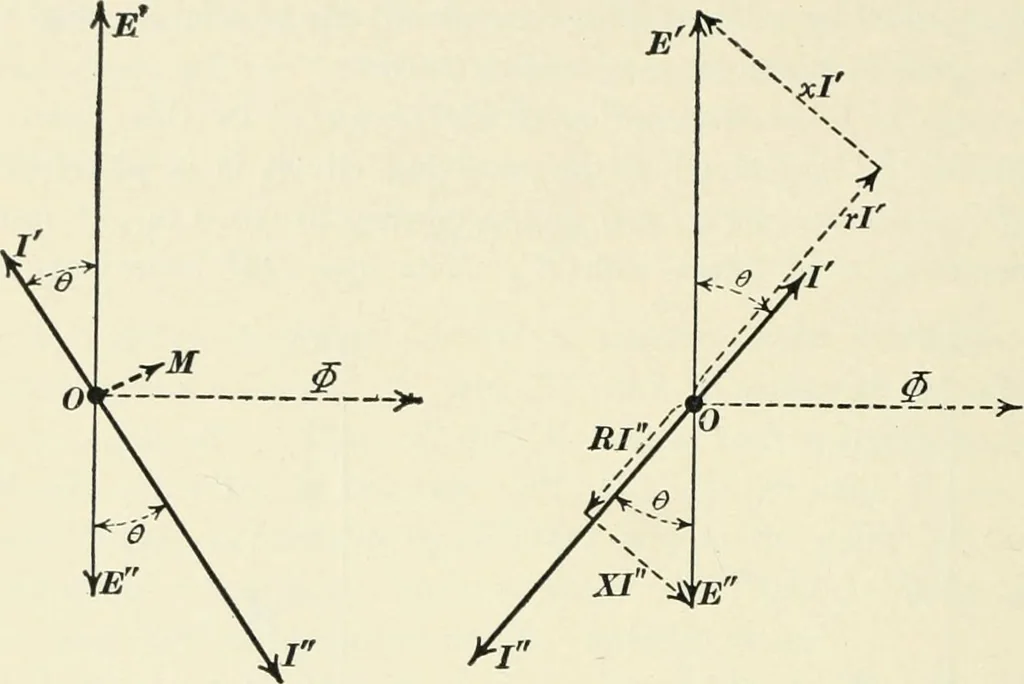

receiving circuit lags behind E by anangle Q of which the tangent is equal to XIR, where X isthe reactance and R is the resistance of the receiving circuit.The load current / in the primary coil being opposite to /in phase is d behind E, as shown in Fig. 221. Case J. Receiving circuit containing a… … Fig. 222. Fig. 223. 156. Equivalent resistance and reactance of an ideal transformerfeeding a given receiving circuit. — The priniaiy of a transformertakes from the supply mains a definite current at a definite phaselag when the secondary of the transformer is delivering currentto a given circuit.…
