Dynamos and motors; a text book for colleges and technical schools (1911)
Franklin, William S. (William Suddards), 1863-1930, Esty, William, 1868-1928 · New York The Macmillan company · leaf 432

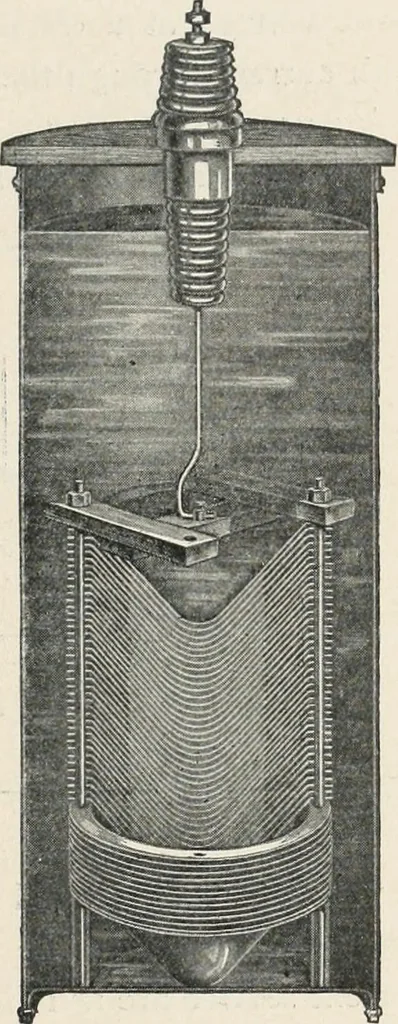

Fig. 314. SWITCHBOARDS AND SWITCHBOARD APPLIANCES. 4^3 age above this value. The aluminum electrolytic lightning arres-ter consists of a number of electrolytic cells like the above con-nected in series with each other and inserted, in series with aspark gap, between the line wire and the ground.… … Fig. 315. Fig. 316. shows a sectional view of the General Electric Companys alumi-num arrester. The electrolyte lies between the deep aluminumdishes thus giving a large number of electrolytic cells in seriesand the stack of cells is submerged in oil which prevents the elec-trolyte from creeping up…
Dynamos · Electric motors
