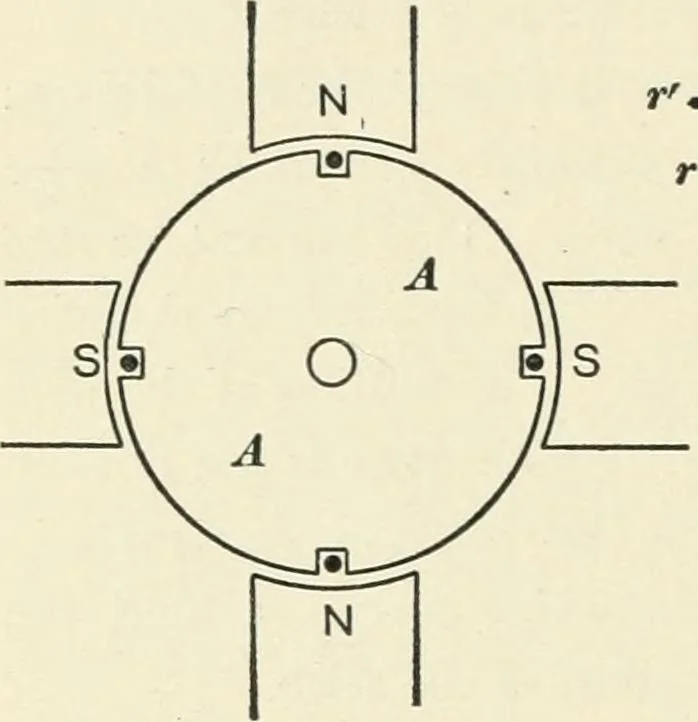

sidewise along thedotted circle so as to cut the magnetic lines of force which eman-ate from the inwardly projecting poles of a field magnet. Whilethe wire is sweeping across a north pole an electromotive force isinduced in it in one direction, and while the wire is sweeping 40 DYNAMOS AND MOTORS.… … To receiving circuit u-N.. i ! S l._4—J I 4._J c^-^ -\:LJ Fig. 14a. Fig. 14b. nating current in the wire and in the outside circuit to which theends of the wire are connected.
