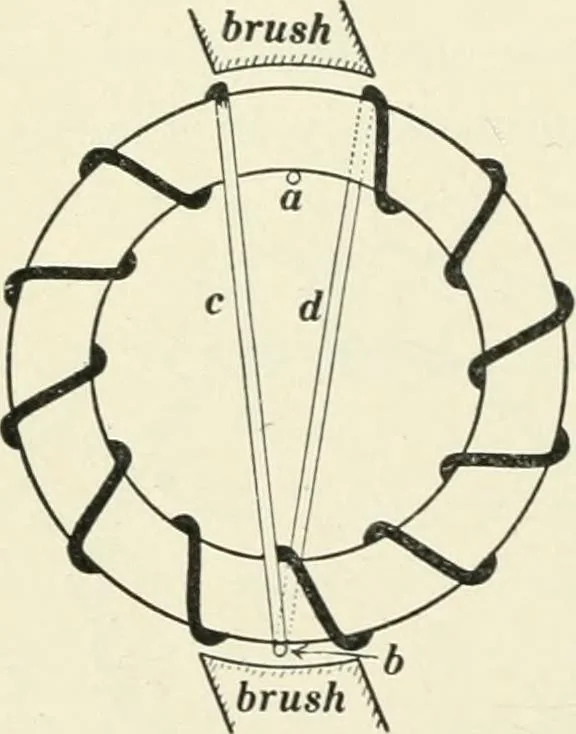

ureto the other on the outside, crosses Fig. 25. over at the other end, and returns onthe outside. The relationship between the ring-wound arma-ture and the drum-wound armature may be understood withthe help of Fig. 25. Each return wire a on the interior of thering-wound armature may be placed at b… … THE DYNAMO AND THE TRANSFORMER. 49 case it is evident that the conductor b, Fig. 25, must not makecontact \vith the lower brush, because if it did, the wires c andd would be short-circuit connections from brush to brush. Everyalternate wire on the out-side of a drum-woundarmature may he a…
