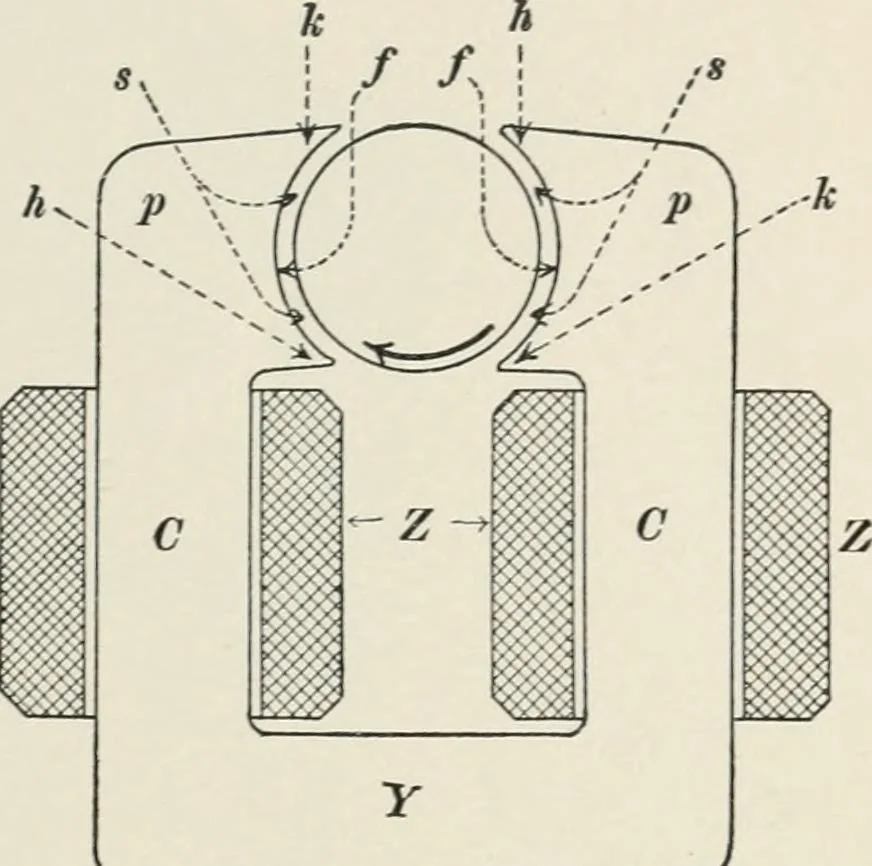

NAMO AND THE TRANSFORMER. 49 case it is evident that the conductor b, Fig. 25, must not makecontact \vith the lower brush, because if it did, the wires c andd would be short-circuit connections from brush to brush. Everyalternate wire on the out-side of a drum-woundarmature may he a com-mutator bar… … ^pi Fig 26. 31. Examples of direct-current dynamos. — Fig-ure 26 shows in outline a typical bi-polar dynamo, and Fig. 27shows in outline a typical multipolar dynamo. The regions ss are called the air gaps, ff thepole faces, pp the pole pieces,and hlikk are called the poletips or horns; hh are…
