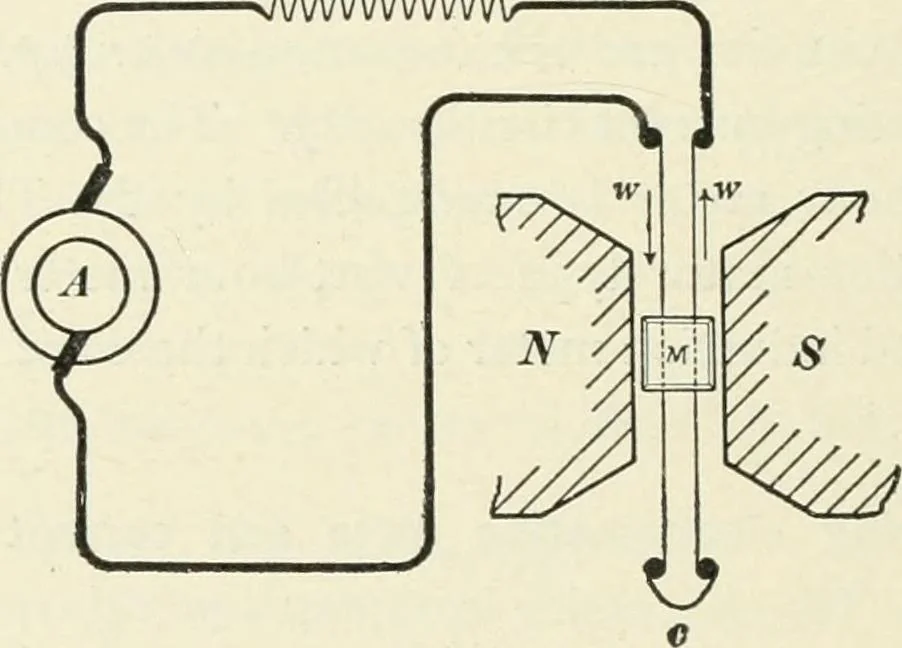

ving circuit. This is exemplified in Figs. 68 and 75,The oscillograpli. — In order that a galvanometer needle mayindicate the successive instantaneous values of a rapidly changingcurrent, such as an alternating current, the galvanometer needlemust be extremely light and the period of free vibration… … Fig. 67. very close together between the poles NS of a strong magnet.A very light mirror M is attached to the wires, and the currentto be measured flows down one wire across the connection c andup the other wire, so that one wire is pushed forwards and theother wire is pushed backwards by the…
