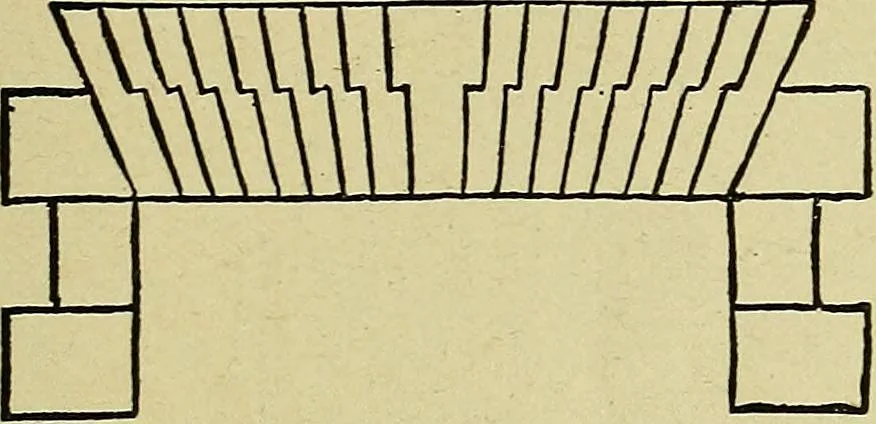

21, the voussoirs are cut to fit into each other, orin technical phrase joggled. EASY LESSONS IN ARCHITECTURE 33 or middle Q. What is the name of the uppermostvoussoir ? A. The keystone; it is generally larger than theother-voussoirs and it is so named because it forms, asit were, a key to bind the… … Fig. 21. FLAT ARCH, JOGGLED. Q. Is this the case with brick work without anymasonry ? A. Decidedly. If the brick are gauged to the propershape, and the arch rightly constructed, with a doubleor treble course of bricks to form the arch, it will, afterthe wall has been carried up a little way, be…
