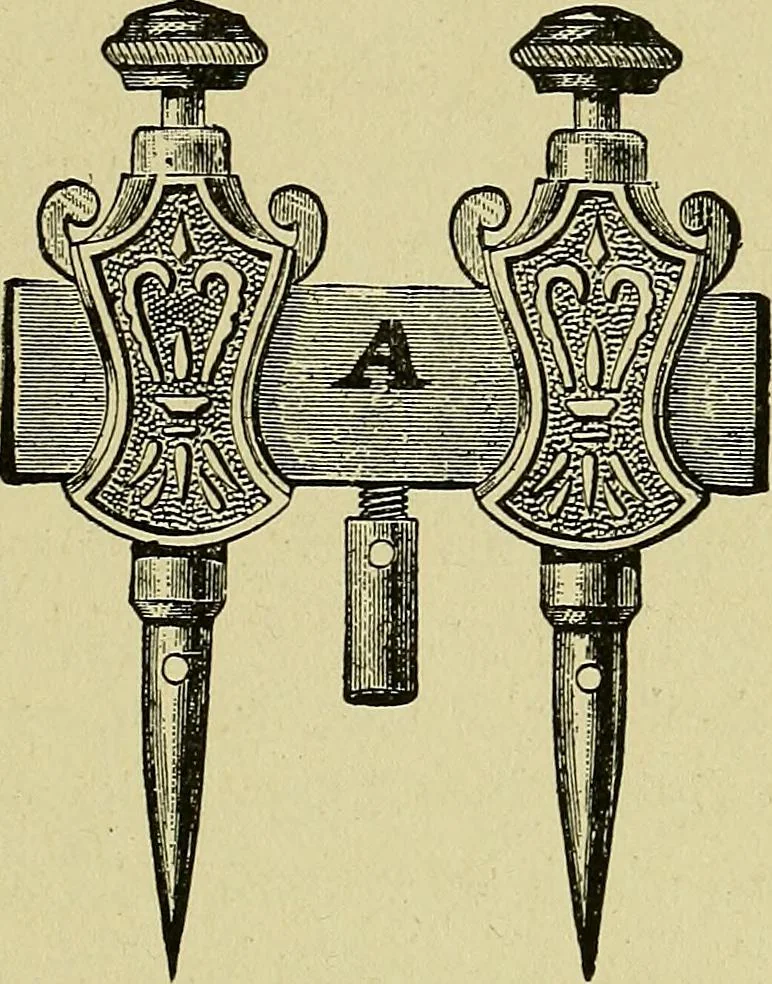

h. Besides thesethere are manyother kinds ofscales made use ofby Architects, En-gineers, and Sur-veyors, but theseshown and d e -scribed, will sufficefor the purposefor which this book is prepared, as it is notintended to embody in this work other than thesimplest methods of plain architectural… … Fig. 16. 32 ARCHITECTURAL DRAWING SELF TAUGHT PLATE 2. Following up the ideas presented in Plate i, Igive herewith the plans for a small cottage andshow the cellar plan, first floor plan and chamberplan. This is drawn to a scale of sV of an inchto the foot, but I would advise the student todouble…
