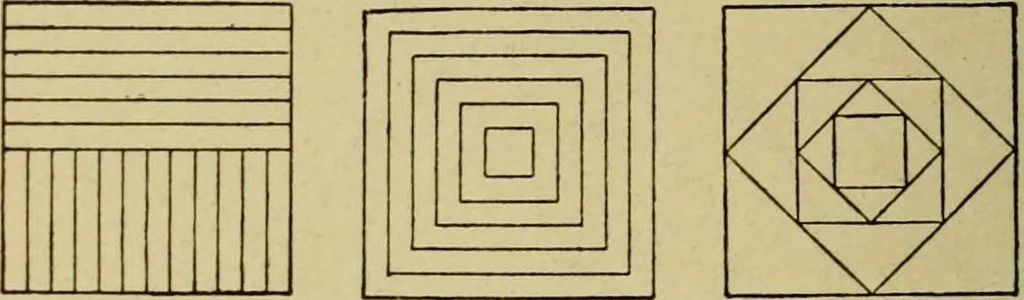

thefollowing examples numbered from Fig. 76 to78 inclusive, which the student is advised to 86 ARCHITECTURAL DRAWING SELF TAUGHT draw and redraw, first by measuring off thedistances, and then by attempting to get theexact distances without measurement. If thelines in the examples are placed less… … Fig. 76. Fig- 77- Fig. 78. kind of work makes excellent practice for thepen. These examples are selected from a largenumber of possible combinations, as givingvariety of practice while not appearing toodifficult. They are, however, more difficultthan they appear, so that they must be com-menced…
