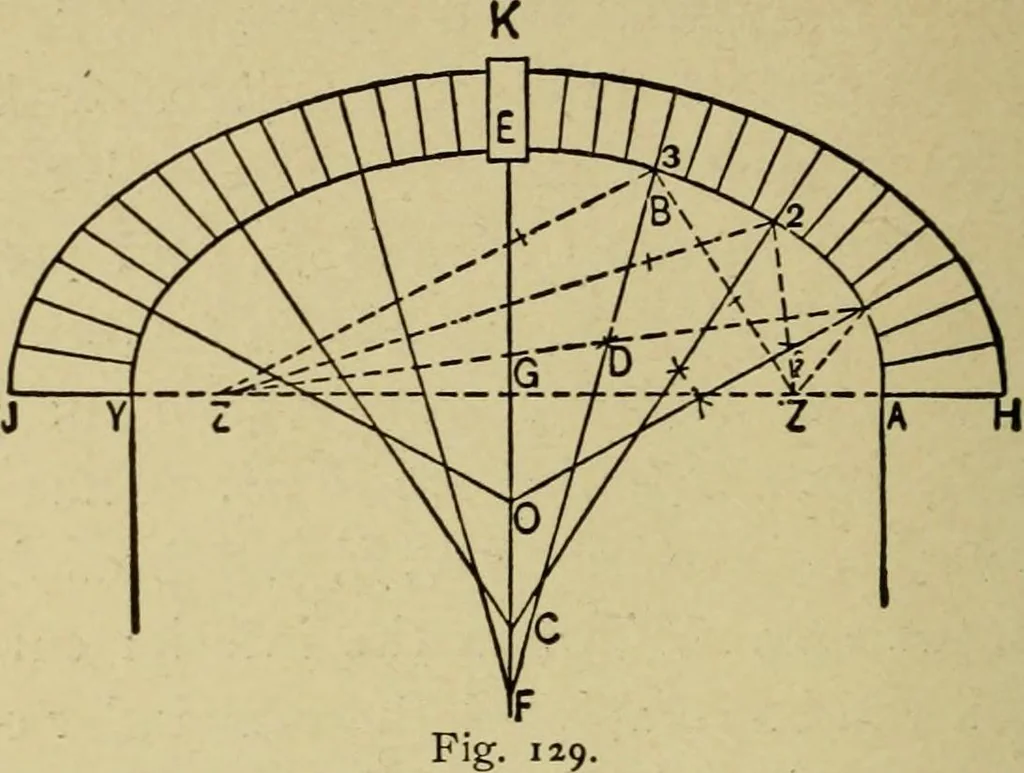

heelliptical arch shown at Fig. 129, we must pro-ceed as follows: Let ZZ be the foci, and B apoint on the intrados where a joint is required;from ZZ draw lines to B, bisect the angle at Bby a line drawn through the intersecting arcsD produced for the joint to F. Joints at i and2 are found in the… … voussoirs near the springing line of the arch arethus increased in size for greater strength.The diagram shown at Fig. 130 shows a lancet A 6—ff—!—JB-I.
