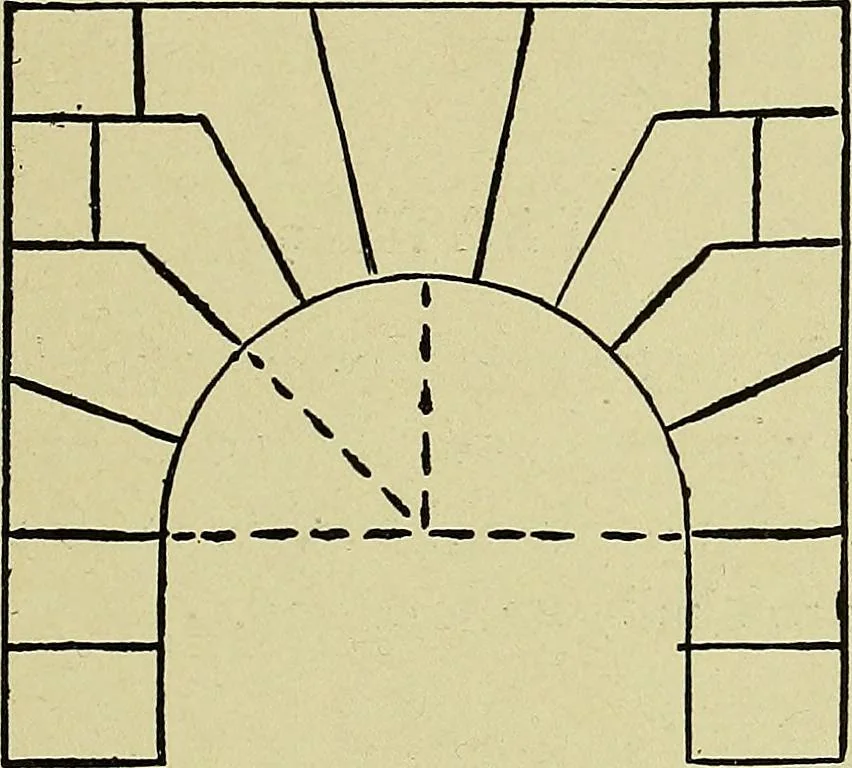

nd, there mustalways be timber or concrete lintel behind theface bricks to carry the wall, and over thislintel, there should be a relieving arch built. ARCHITECTURAL DRAWING SELF TAUGHT 1*3 This latter arch is generally built up roughlyunless it is intended to carry a great weight, thencare must be… … Fig. 144. struction on paper will make good practice.The example shown at Fig. 144 is a verycommon one in stonework and shows how thestyle of work is prepared. It will be seen thatthe joints are generally radial, while horizontaljoints are formed to receive the stone above. Another style of opening…
