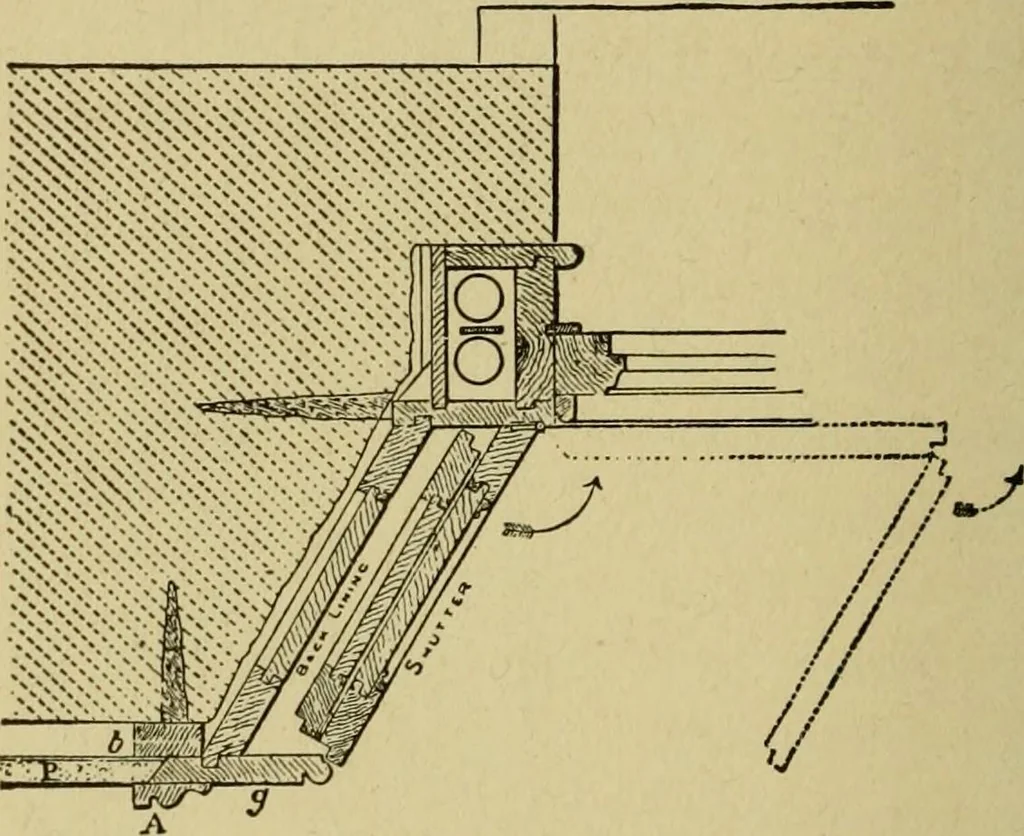

Fig- 154- 154 ARCHITECTURAL DRAWING SELF TAUGHT The plan is shown at Fig. 155. This showsthe shutters box splayed from the wall. Thedotted lines show the shutters partly folded. In redrawing these examples the studentshould make them at least twice or three timesthe size shown herewith; this can… … Fig. 155. done by taking the distances on a compass andtransferring to the paper on which the drawingis to be made. If the drawing is to be twice thesize of the original, then space off the distanceof each feature twice, if to be three times thedistance, then space off three times, and so onfor…
