Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 578

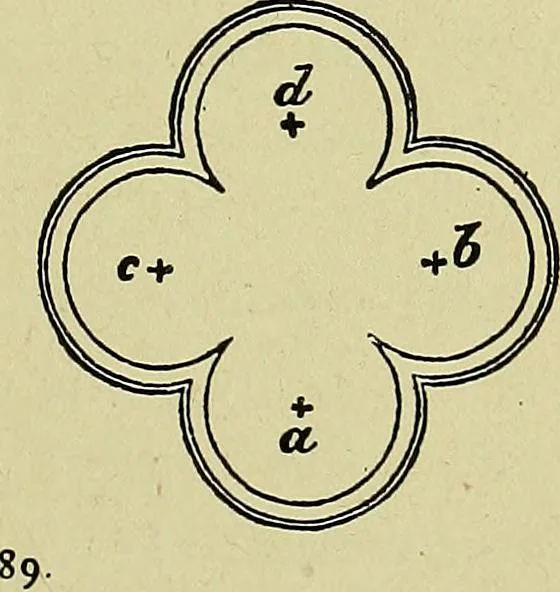

AL DRAWING SELF TAUGHT 173 shown. This is composed of different figures, as e e forms a complete square, a number of which are set off at regular intervals, then arrange so that the points a 5 mi i a m fffl 0 d will be covered,by the points b o c,and continue thefret to the requiredlength. In… … to fairly understand the principles on which theornamentation is based. The diagram shown inFig. 189 will suggest to the draftsman somethingof the method in which combination of circles 174 ARCHITECTURAL DRAWING SELF TAUGHT may be used for ornamental purposes. Here adiagonal square, c d f g, is…
