Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 608

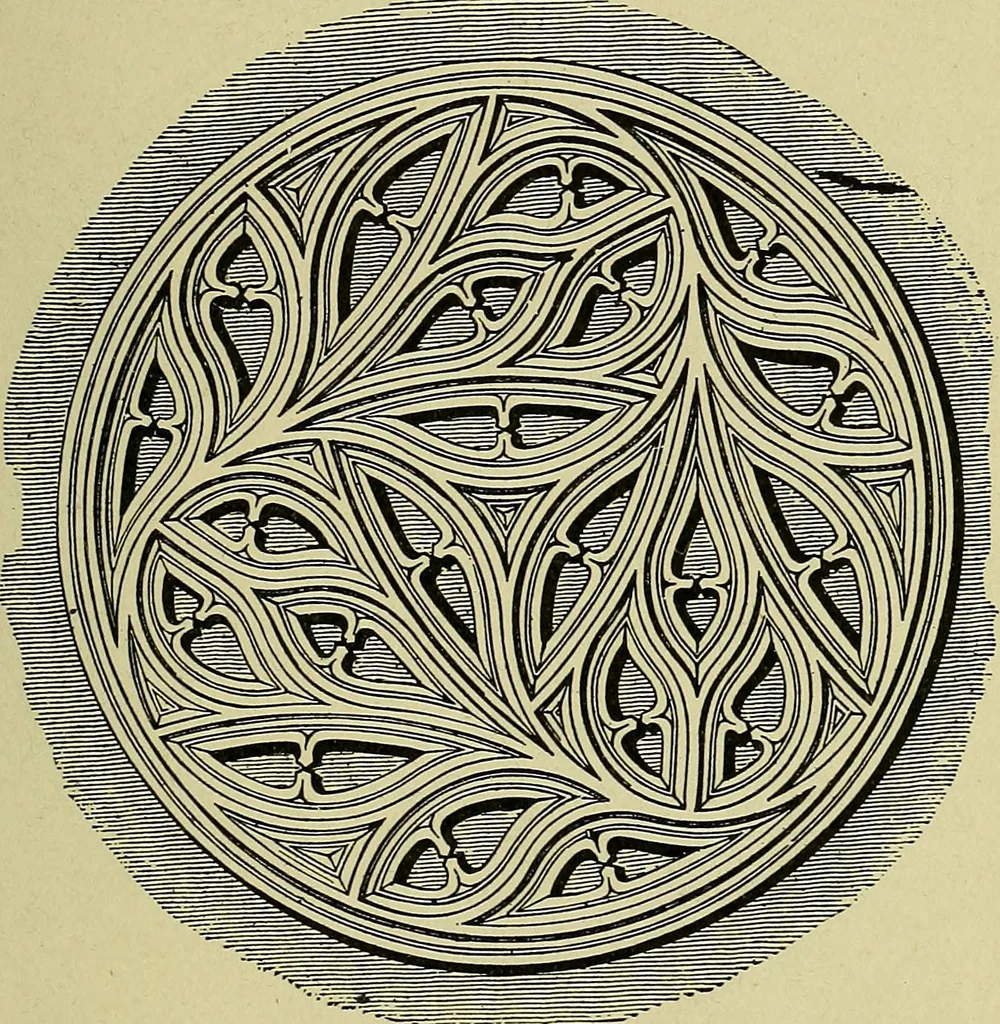

and will open up new and unexplored fields forpractice, for hundreds of designs may be formedby aid of the knowledge gained in understandingthe examples herewith presented. ARCHITECTURAL DRAWING SELF TAUGHT 195 The diagram shown at Fig. 217 exhibits theskeleton work for the finished tracery shown… … Fig. 218. student will soon be able to draw the completedwork, Fig. 218. In Fig. 219 we have another skeleton for astill more elaborate piece of work. The centers 196 ARCHITECTURAL DRAWING SELF TAUGHT are all shown by black dots, and portions of thecurves are also given. The completed workshown at…
Architecture · Architectural drawing
