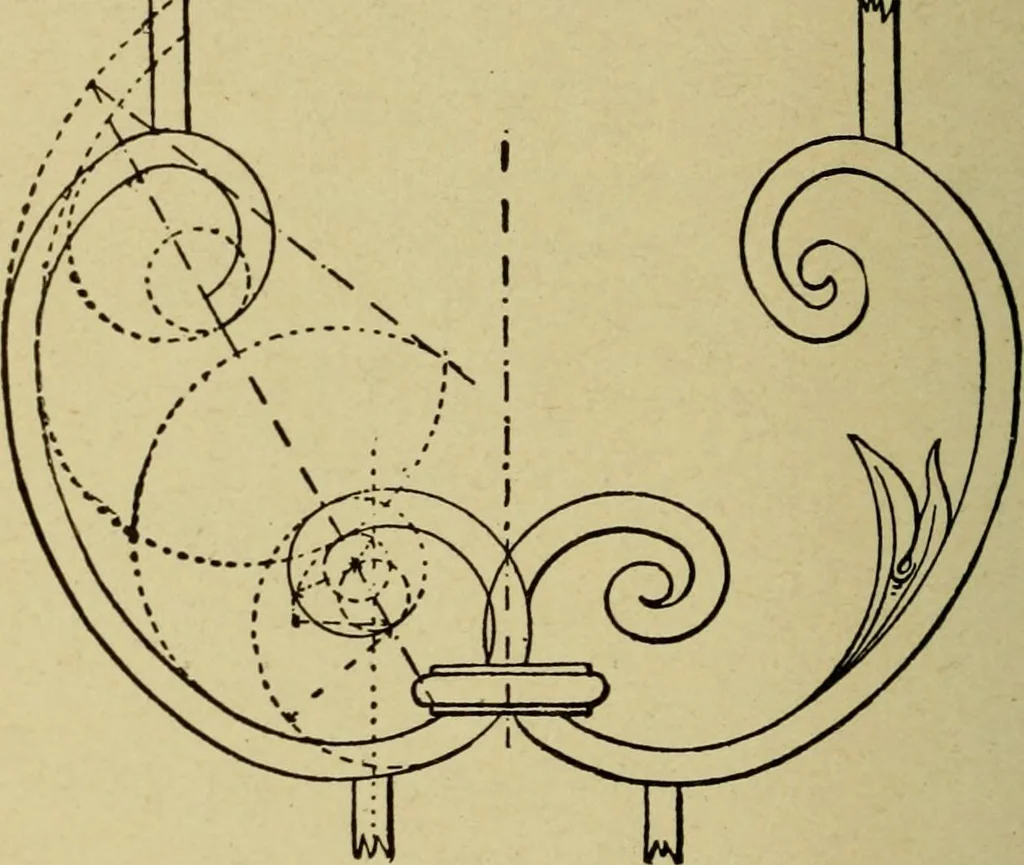

ethem in quick time, and will give him an insightinto the methods employed in designing orna-ments of this kind. Another very simple design, and one thatrequires but little description on the manner 200 ARCHITECTURAL DRAWING SELF TAUGHT of making it, is self-evident, and is shown at Fig.^23. This… … Fig. 224. which the curves of the pattern are drawn. Themethod of forming scrolls has been described ina previous chapter, so that it is unnecessary torepeat at this stage. The design is simple, thecenters being all given and the dotted linesshow the radii of the curves. ARCHITECTURAL DRAWING SELF…
