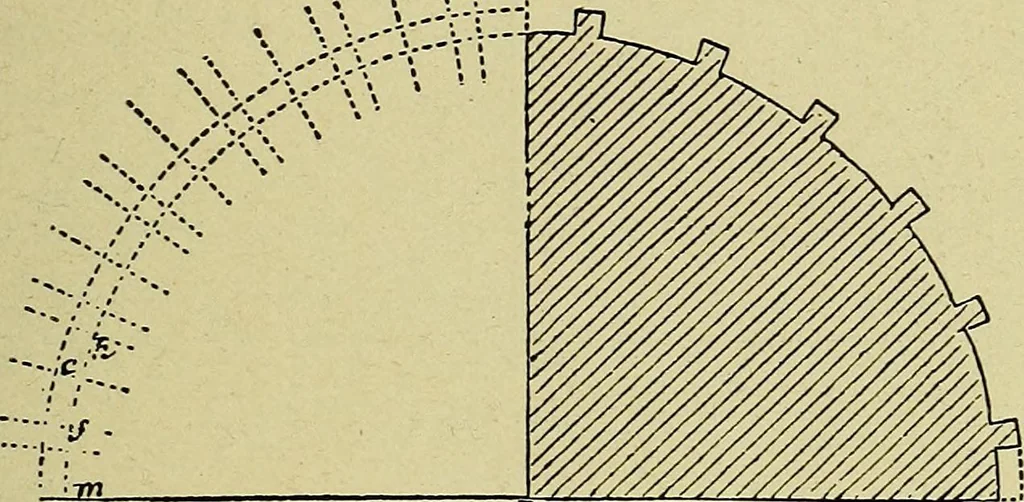

tting the radial lines. Bisect a f in o, andwith f o as radius, from the points—where thedotted semicircle intersects the radial lines—as ARCHITECTURAL DRAWING SELF TAUGHT 221 centers, describe the arcs as in the example.Another method is shown in Fig. 236. which isformed as follows: Make the… … o Fig. 237. off on the radial line b e to n. From b, with bn, describe the dotted semicircle, f n o. Thecenters f the flutes are placed where the radiallines intersect this semicircle. From n, with nm, describe the lines as shown, and finish thesection. A section of a column having flat flutes…
