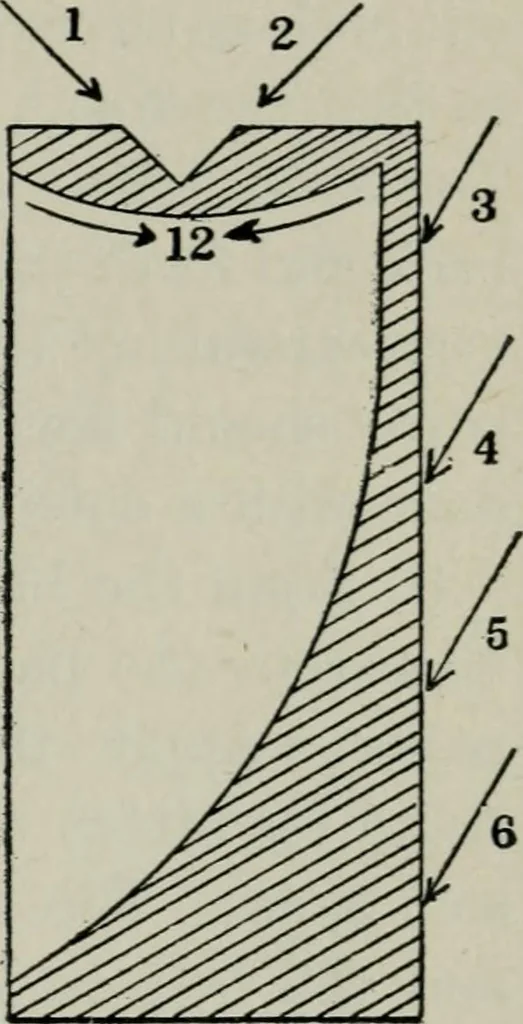

Cut inthe direction of 1,Fig. 152, then in thedirection of 2, finishing the cuts towards 12. Cut inthe direction of 6, 5, 4, and 3. Be veiy careful not tosplit the block of wood. Get good square edges, edgesthat are clean-cut. 6. Cutting (second method). Follow the outline ofthe match strike very… … Fig. 152. — Cutting with knife. 168 EDUCATIONAL WOODWORKING shavings. Now make another perpendicular cut, 9,and then a diagonal cut, 10, lifting out the shavings.Make another perpendicular cut, 11, separating the wastelumber from the finished work. 7. After all the cutting is done sand the edges…
