Educational woodworking for home and school (1908)
Park, Joseph C · New York, MacMillan · leaf 55

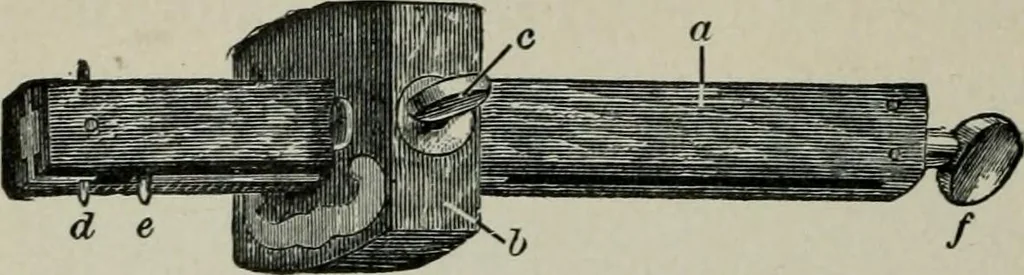

Fig. 15. — Marking gauge, a, bar; 6, head;c, thumbscrew; d, point. 36 EDUCATIONAL WOODWORKING … Fig. 16.—Mortise gauge, a, bar; b, head; c,thumbscrew; d, fixed point; e, movable point;/, set screw for movable point. edge. It is con-structed like amarking gaugeexcept that ithas two points,one fixed and amovable point.Its principal use is in the making of mortise and tenonjoints, from which its…
Manual training · Woodwork
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
