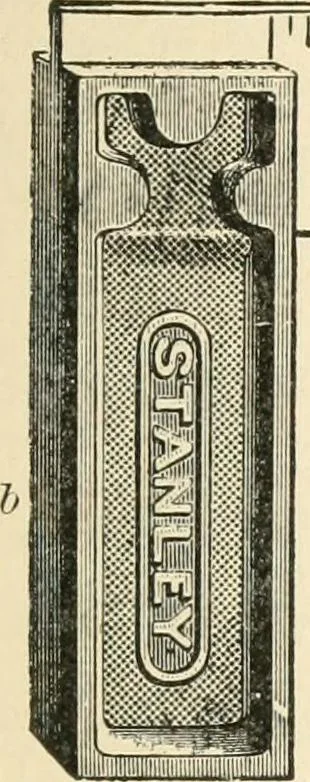

ly against the face and thenslid down until the blade touches an adjoin-ing edge. If the face and edge fit the try-square perfectly, they are true to each other, i.e. theyform a right angle. The parts of the try-square are theblade (a) and handle (b). These parts are riveted firmlytogether so that… … A 6-inch blade is aboutpractical purposes. Theshown in Fig. 4 is nickel-die is sometimes made ofhaving a brass face plate towood. Theseare more ex-pensive thannickel-plated FlG 5 _ Bevel ^ blade. 6j handle. handles. c, set-screw. 6. Bevel. — The bevel consists essen-tially of a handle (b) with a…
