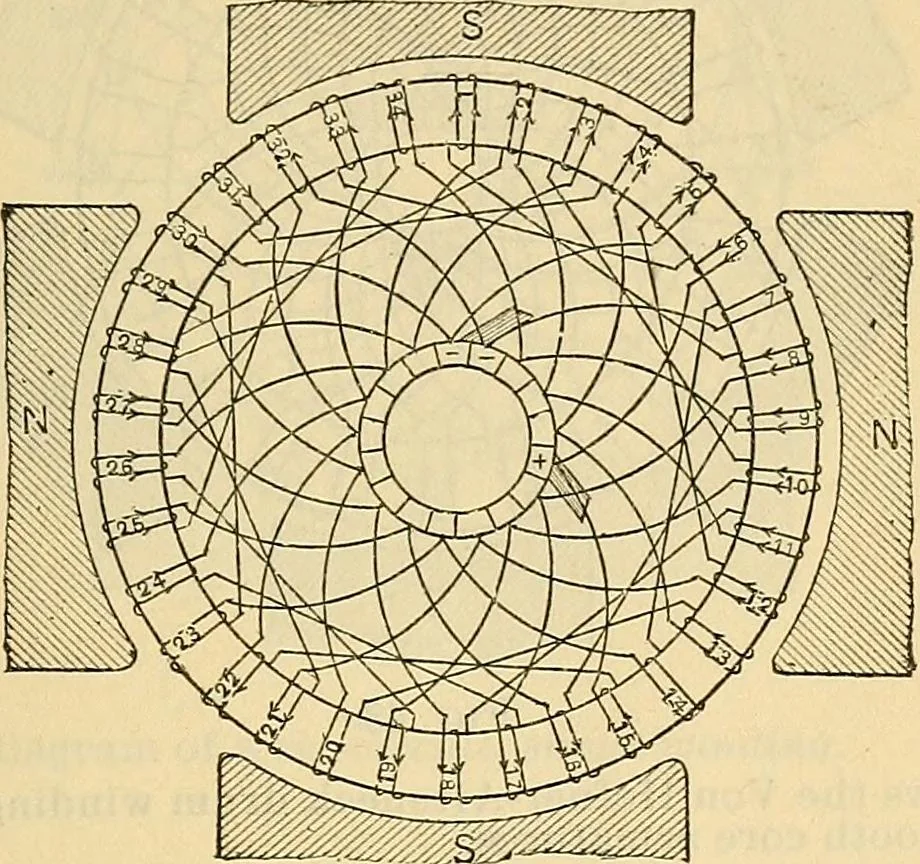

on type the formula for determining the number of coils is S = ny ± 2,and Fig. 46 is a sample diagram of one of the type. Two-circuit Multiple-wound Multipolar Rings. — The for-mula for determining the number of coils and other factors for this classof windings is ARMATURES. 255 £=— X y±m where S=… … The following figure is a diagram of a two-circuit doubly re-entrant, doublewound ring armature :
