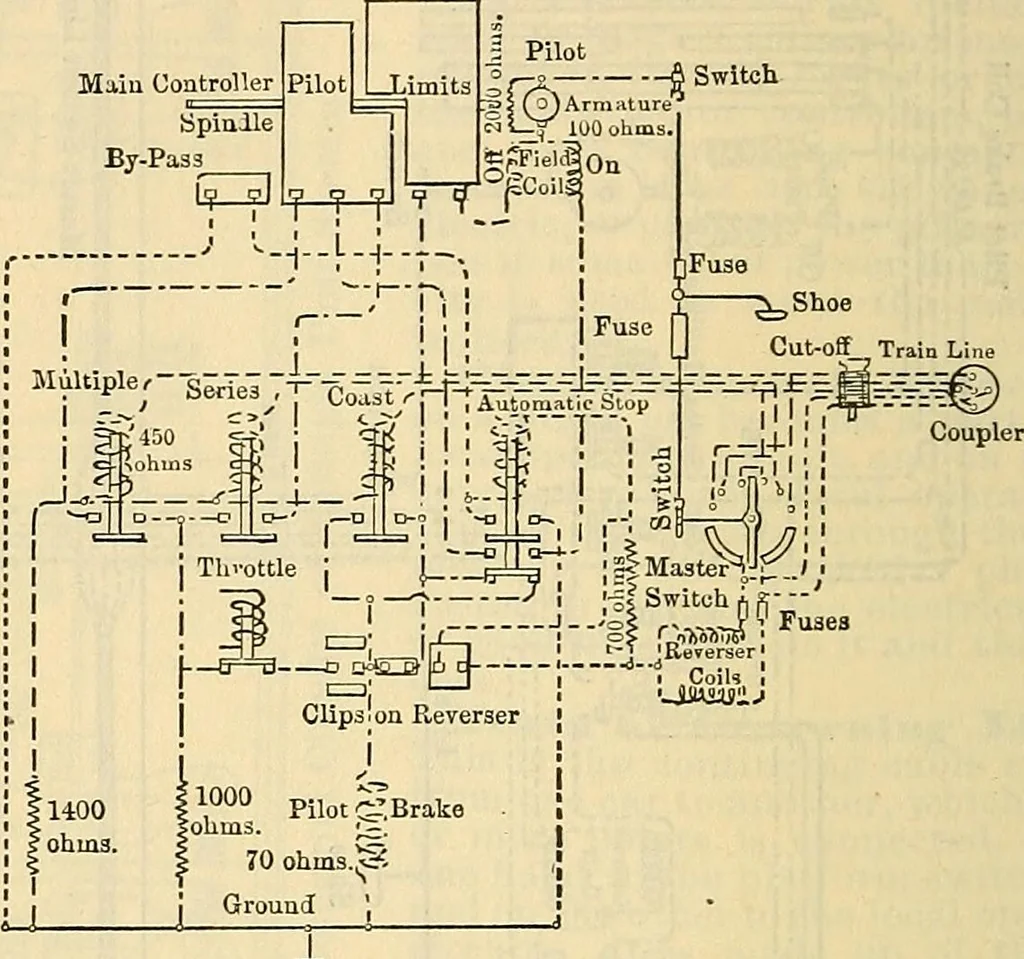

closing the line supply to one or more independent train wires, each ofwhich operates a relay. This switch has neither mechanical nor electricalconnection of any kind with the motor circuits, nor, although it has certaincorresponding position, is its movement necessarily coincident with,… … FlG. 46. Schematic Diagram of Control Circuits Only, Sprague System. is supplied to each motor, which is the half-speed combination. In goingthence to full speed, the main circuits are first opened instantly at the maincontroller, or, if desired, progressively through resistances and…
