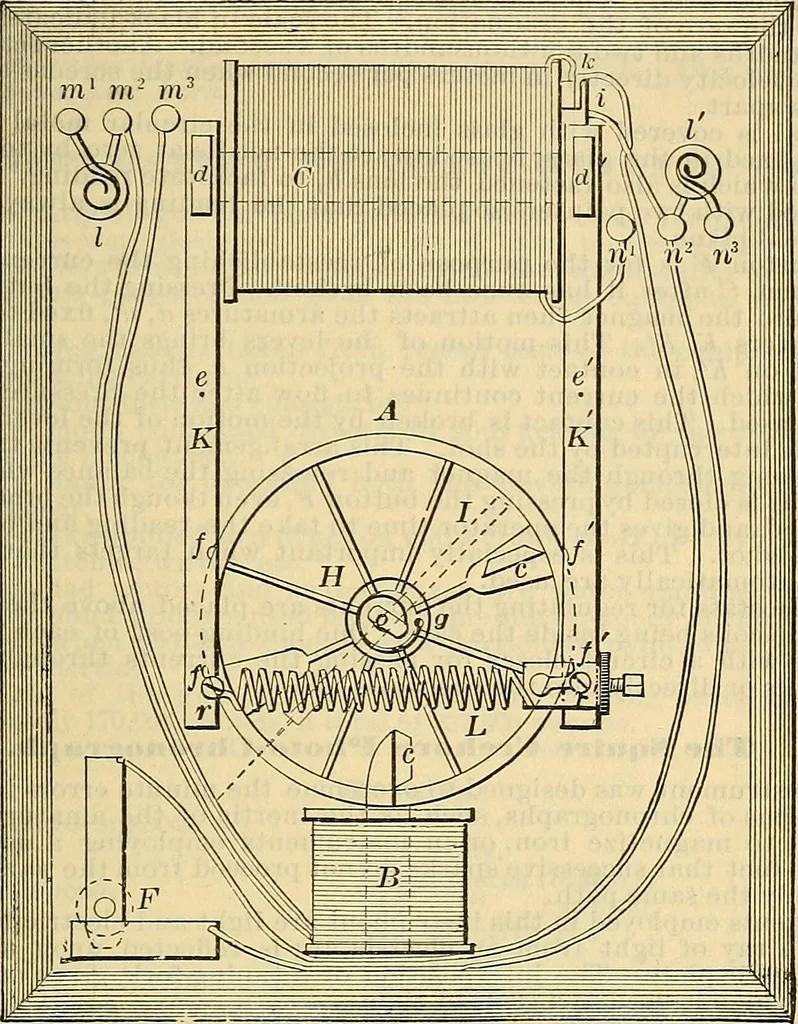

point, is operated by the current passing through the first screen, and ismounted on the face piate so that the core is radial with reference to thebalance-wheel. Tbe core of the magnet projects beyond the coil and actsupon the small armature c, mounted on the rim of the balance-wheel. The… … Fig. 7. Interior Schimdt Chronograph. placed tangentially with reference to the balance-wheel. It acts upon thetwo armatures d, d, placed opposite the extremities of the core. Thesearmatures are fastened to the ends of the two levers K, K, which aremounted on the axis e, e, parallel to the axis of…
