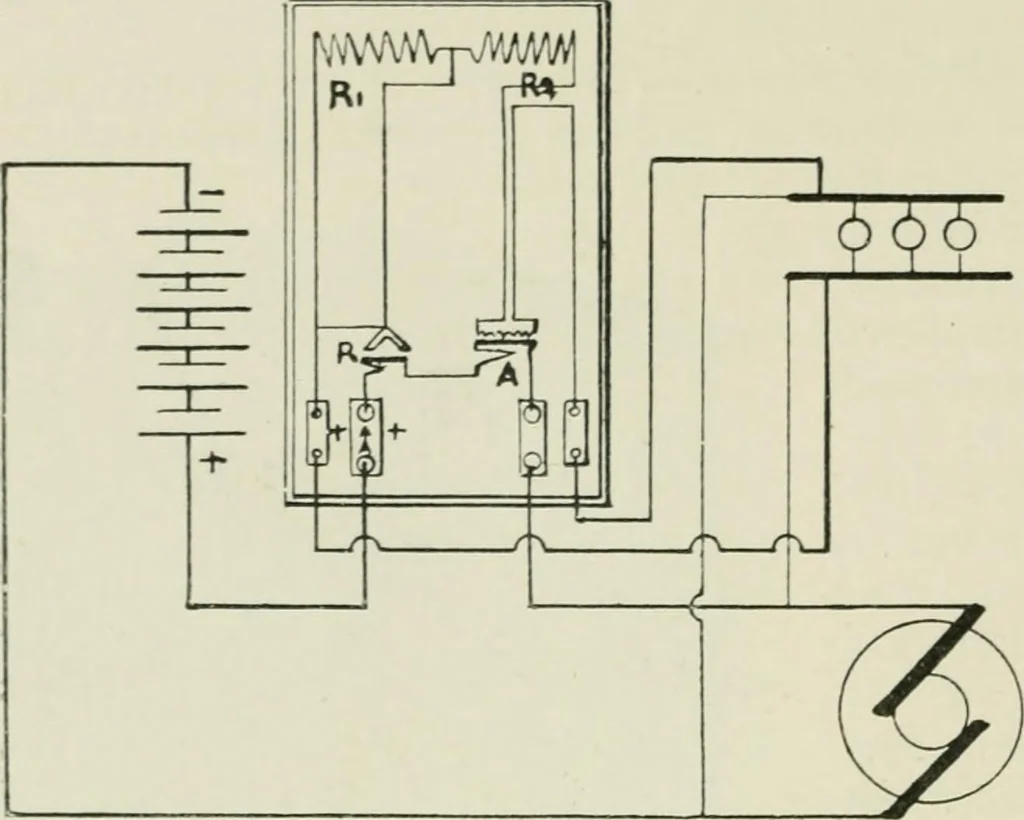

Fig. 242.—Aron-Miller Battery Meter Batterv Meter … Fig. 243 When the current flows towards the battery (charge) the magnet will try to placeitself at right-anglesto the direction ofthe current, and indoing so it short-circuits the resist-ance Rj. Whenthe current is flow-ing in the oppositedirection (discharge)the magnet is pre-vented from turningby…
