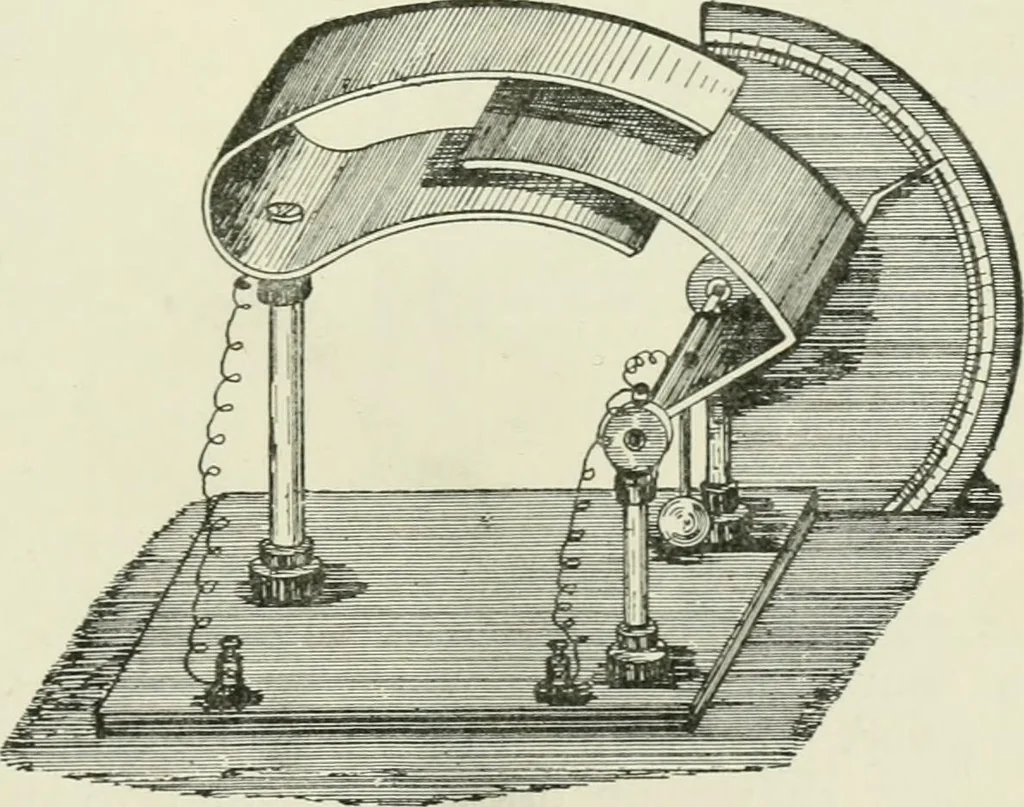

65 a plate or disc is shown edge view, and is usually represented to have a charge much denser at the edge, as shown by the dotted outline ; this, however, . does not fully illustrate the facts. Fig. 66 shows i the facts in this case : the bulk of the lines of g force stream up to the upper disc ;… … Fig. 6S Fig. 67 condensers, the lower plate being the one coating and the upperplate the other coating, the air the dielectric ; the one coating ismade movable so that the force attracting it can be measured.Following this principle, many designs can be made. Fig. 67shows a condenser with the inner…
