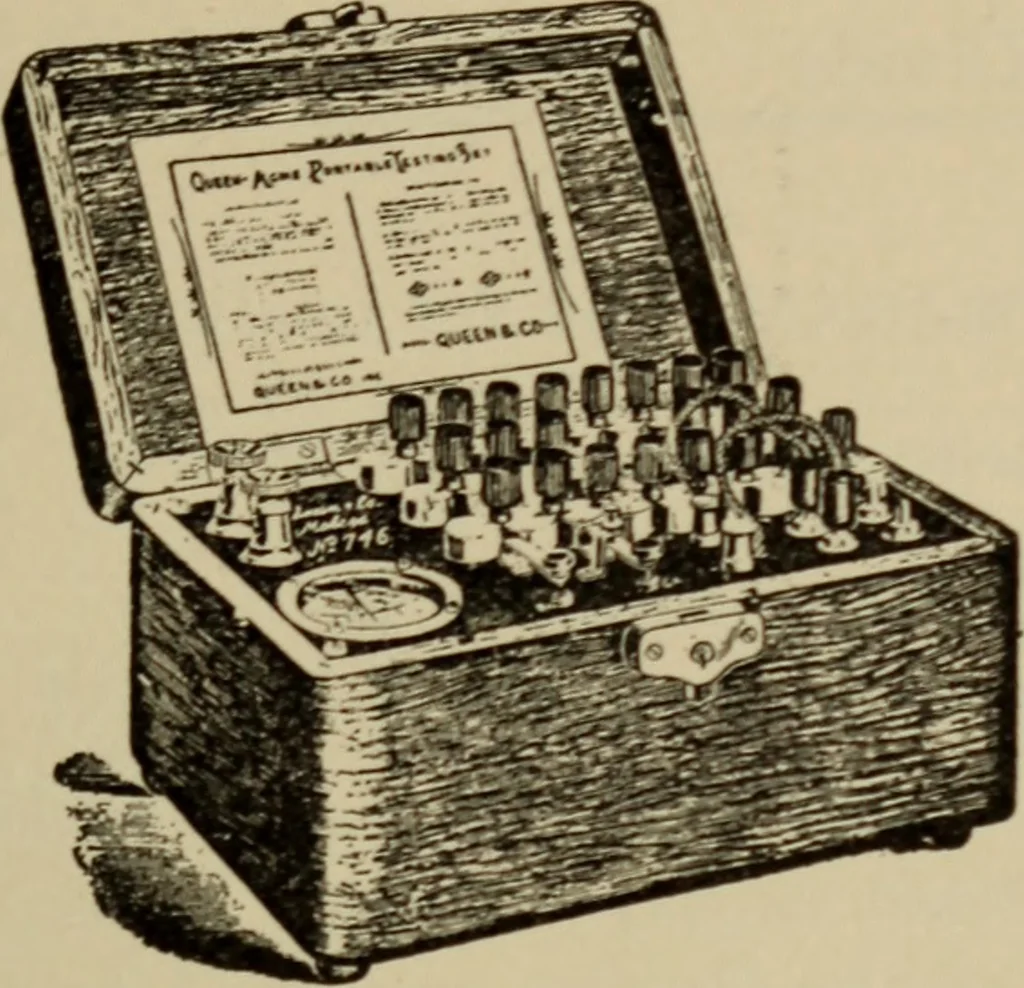

s. The middle row is the Bridge, the top and bot-tom rows, the rheostat. In the centre of the Bridge is a split block com-mutator R x which can be connected to the Bridgearms by plugs. If the plugs are inserted in this commutator inthe direction of arrow L as shown, the resistancein the rheostat is…
