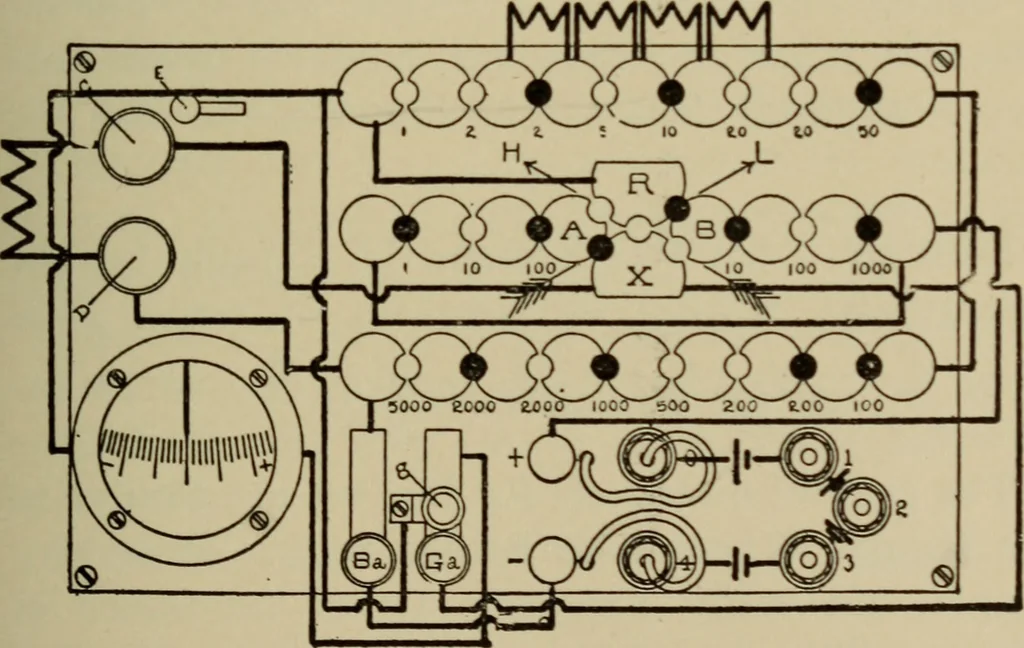

Fig. 62. 90 ELECTRICAL INSTRUMENTS. equal 100 ohms and commutator be set as in figure.100 ohms in arm B divided by 10 ohms in arm B = 10. Divide rheostat by 10, — - 10 ohms. But let commutator be set in direction of arrow H. Then same example, -— = 10, 100 ohms in rheostat X 10 = 1000 ohms. The…
