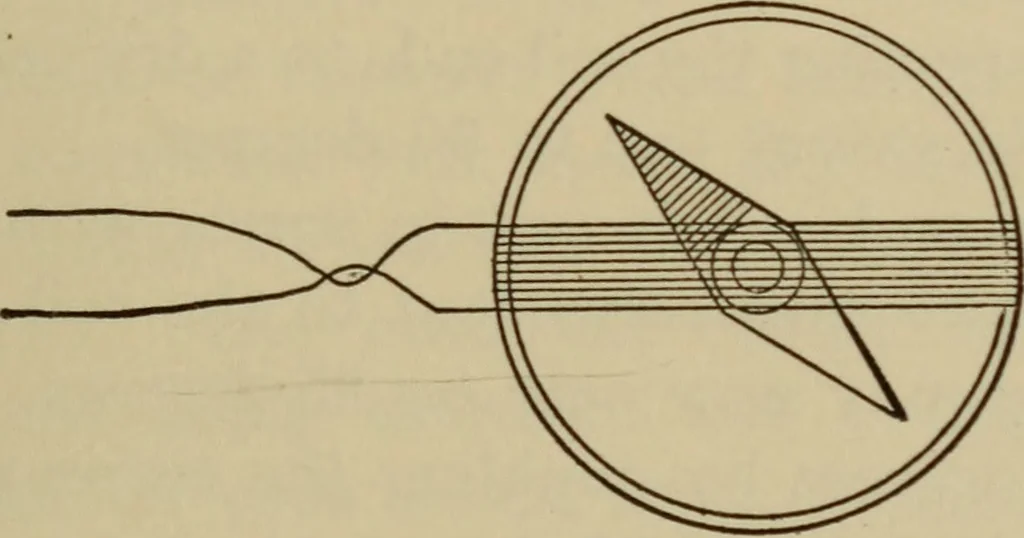

r the current strength for a given periodof time are Recording Voltmeters, Recording Watt- XVI INTRODUCTION. meters, etc., according to the unit by which theirrecords are read. As the underlying principles of instruments be-longing to the latter class are mostly to be foundin those of the first… … Fig. 1. An ordinary mariners compass has a few turnsof fine insulated copper wire wound around itscase, a suitable gauge being No. 26 B. & S. or No.28 S.W.G. If current from a battery or other source besent through the coil of wire, the magnetic needlewill tend to turn at an angle to the wire…
