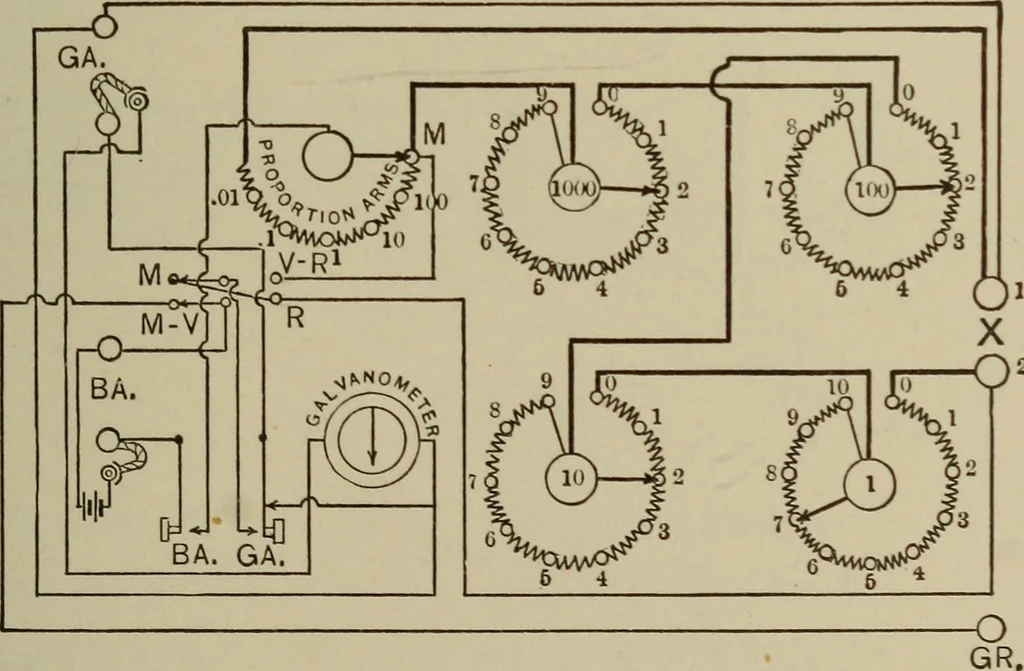

IN WIRES. 219 right let us call the Varley measurement R, then _ L-DR ^r — p. -. , where F is resistance to fault and D is the ratio dial reading. It will be noticed thatthis formula is very simple and quickly handled.For example, take the measurement described inFigs. 120, 121, and 122, where for… … Fig. 125. Murray Test with Leeds & Northrup Dial Bridge. Now let us throw both switches to the right andplace arm A on point M. If the student will trace 220 ELECTRICAL INSTRUMENTS. out the connections he will see that the arrangementis identical with that outlined in Fig. 91. It willalso be…
