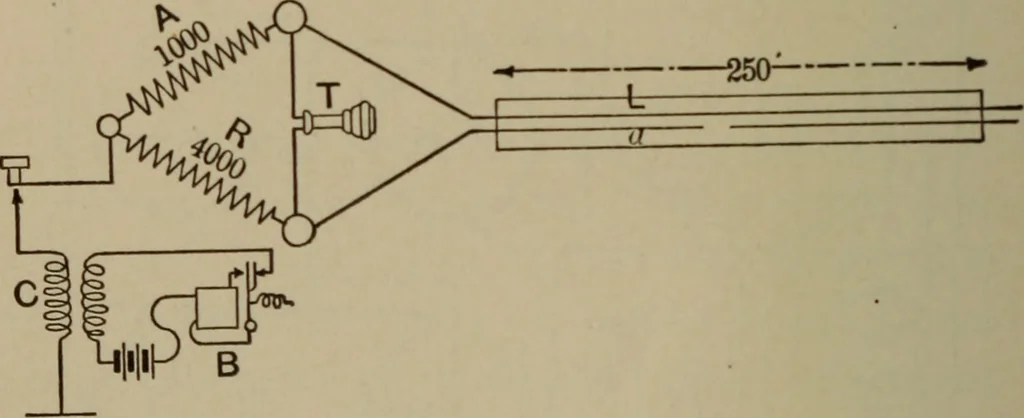

tis identical with that outlined in Fig. 91. It willalso be found that we have 1000 ohms, or the entireratio arms resistance as our fixed ratio factor. Ifnow we obtain a balance on 656 ohms and call thisResult R, then RxL 656X2.5 or 1000 + R 1000 + 656 = .99 ohm. Locating Openings in Cable… … Fig. 126. In Fig. 126 A and R are the arms of the bridge,R being made the rheostat resistance so as to geta wider range of adjustment than would be affordedby the B arm. C is a small induction coil, such asis used in telephones. B is an ordinary buzzer con- LOCATING FAULTS IN WIRES. 221 nected in…
