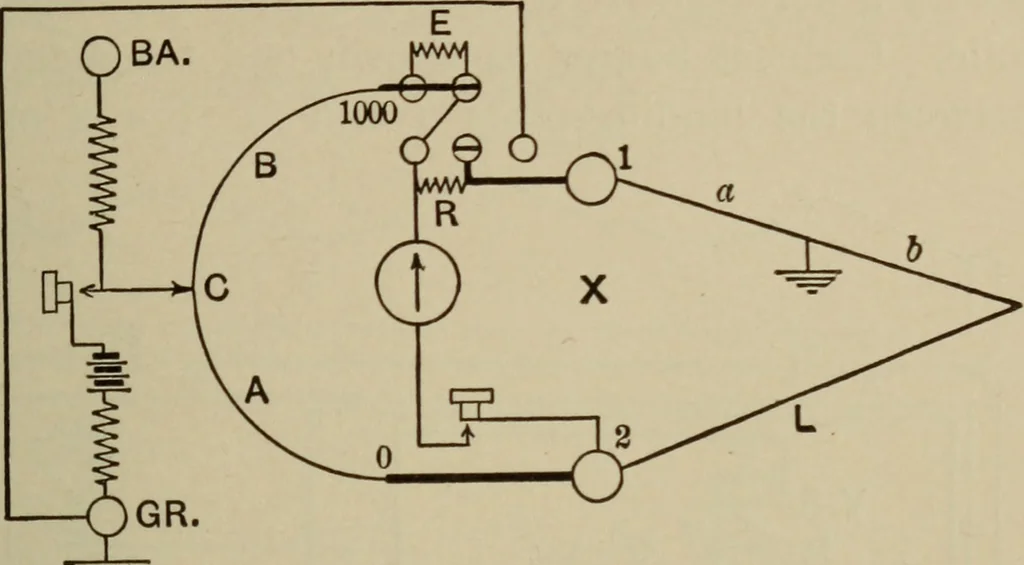

od is to be used for locating faultswhere the good and the bad wires are not equal toeach other. The connections are shown in Fig.130. It is the ordinary Murray loop, and it willreadily be seen that the resistance a to the fault will be gotten from the formula a = -— Z, where L is the resistance of… … Fig. 131. The resistance a to the fault from the binding-post B.L — 100A t1 is a = , where L equals the total re-sistance of the loop, A equals the reading of contactC, and£=: 1000 — A.
