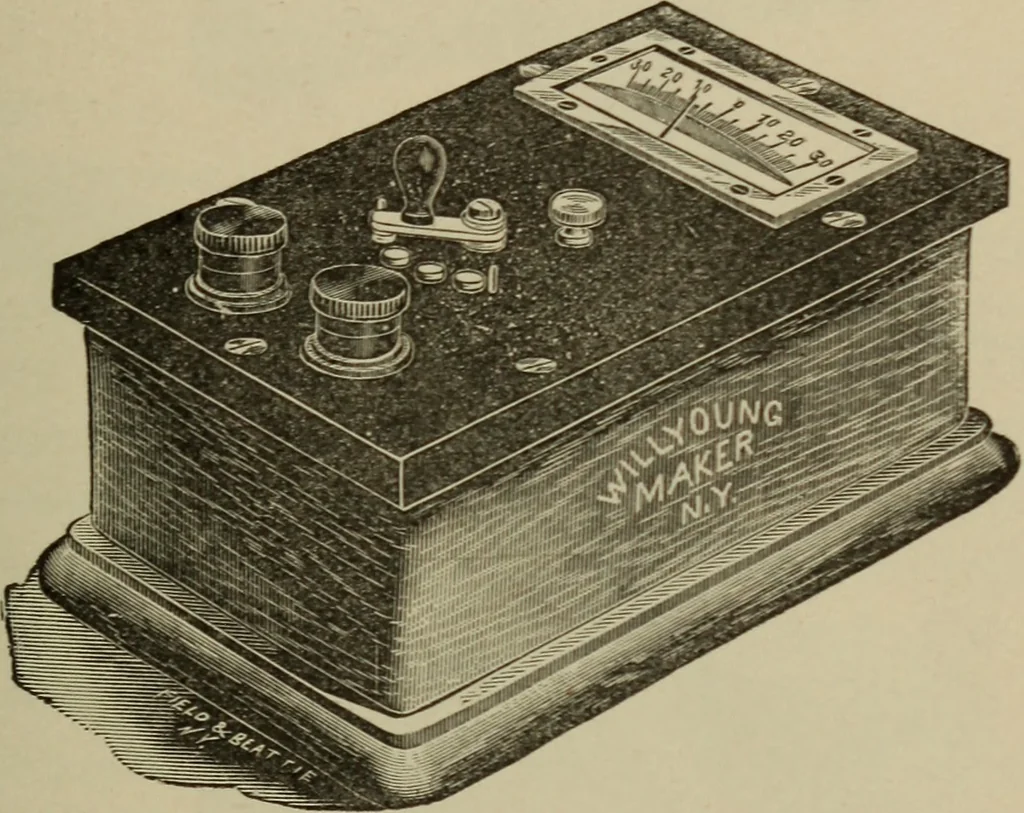

t of the coil to zero reading. Fig. 13. To clamp the coil for purposes of traveling, thehead C is turned, E then raises the coil taking itsweight from u and clamps it against D. The upper spindle A admits of the adjustment GALVANOMETERS. 21 of new suspension wires. It is clamped by a setscrew at e.… … Fig. 14. and out through F to a spring connected to abinding post. A portable DArsonval galvanometer, Fig. 14, isconstructed with a sensibility of upwards of onemegohm. It is dead beat and has a scale dividedfrom a central zero into 50 divisions right or left. As has been remarked before,…
