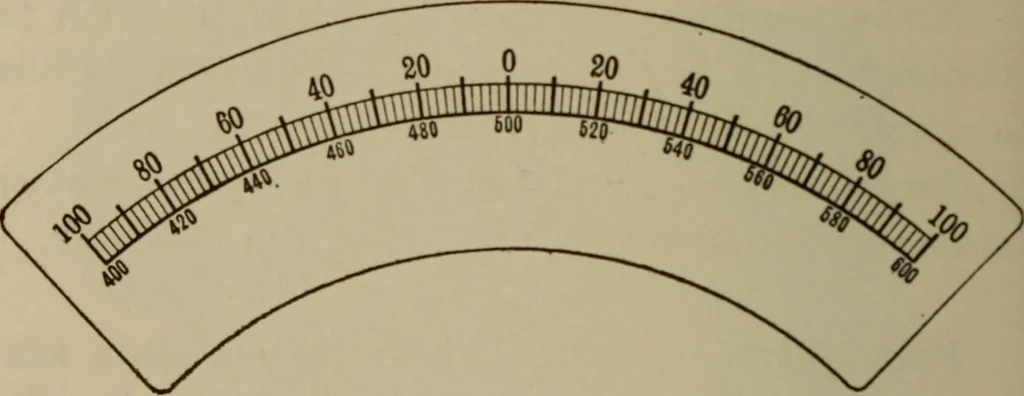

er left scale reading and thaton the lower left scale directly underneath it, the 50 ELECTRICAL INSTRUMENTS. total will be 500. And subtracting the upper .read-ing from the lower reading on the right scale alsogives 500. Differential Voltmeters. Differential voltmetershave a central zero and are… … Fig. 38 are equal. The needle points towards the side ofhigher e.m.f. When the two generators are being operated, thereadings on either side must not be taken to rep-resent the e.m.f. of that particular generator.The readings indicate the difference between thegenerators. Double Scale Instruments.…
