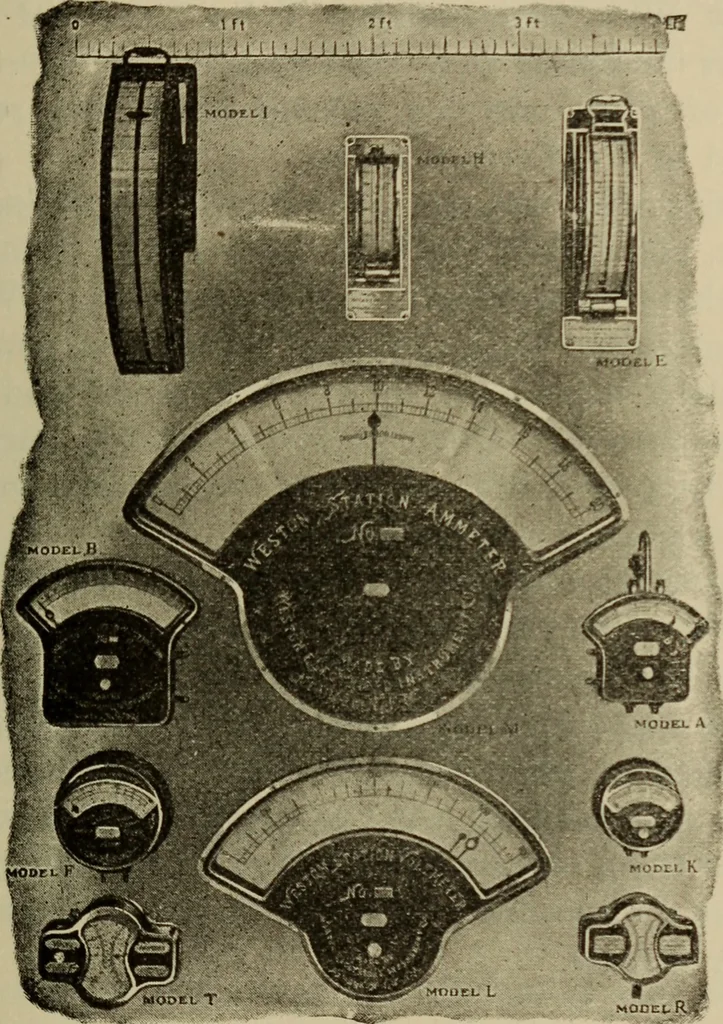

and Milliampere Instruments. The prefix milli means one thousandth, a millivolt isan e.m.f. of one thousandth of a volt, a milam-pere or milliampere, one thousandth of an ampere.Instruments of which the total scale reading isabout one volt or one ampere, and those in whicheach scale division… … Fig. 40. etc., and their use will be described in the chapteron testing. 54 ELECTRICAL INSTRUMENTS. Relative Sizes. Fig. 40 embodies the relativesizes and styles of Weston instruments with theirstyle letters. Hot Wire Instruments. Voltmeters and am-meters indicating from the expansion and…
